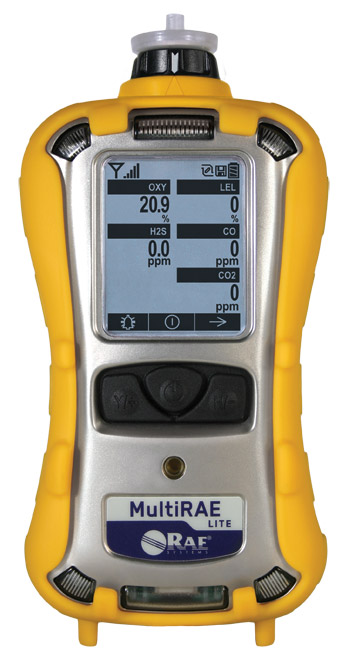

RAE Systems MultiRAE Lite Multi-Gas Monitor

RAE Systems

RAE Systems MultiRAE Lite Multi-Gas Monitor

MODEL# PGM-6208, PGM-6208D

  • 30 interchangeable sensor options, including PID for VOCs, NDIR and catalytic for combustibles, and NDIR for CO2.
  • Intelligent sensors store calibration data, so they can be swapped in the field.
  • Continuous datalogging (6 months for 5 sensors, 24/7).
  • Large graphical display with intuitive icon-driven user interface.
  • Available in pumped and diffusion models.

The MultiRAE Lite is an optimal one-to-six-gas wireless monitoring solution for personal protection (including confined space entry) and multi-gas leak detection applications. Available in pumped and diffusion versions, the MultiRAE Lite can be configured with up to 30 sensor options (including PID and NDIR) to fully meet the monitoring needs of a variety of applications.

The instrument boasts the largest display and longest battery runtime in its class (with an optional extended battery), as well as an ergonomically contoured case that is rugged, dust-tight and waterproof (IP-65 rating (pumped), IP-67 rating (diffusion)). A compartmentalized design of the MultiRAE Lite makes the replacement of its intelligent sensors, pump, and plug-and-play battery simple, even in the field, and the AutoRAE 2 Automatic Test and Calibration System ensures bump testing and calibration of up to 10 instruments is as easy as a press of a button.

When deployed on RAE Systems’ Dedicated Wireless Network, the MultiRAE Lite provides safety officers wireless access to real-time instrument readings and alarm status for better visibility and faster incident response. The MultiRAE five-way notification system for gas and Man Down alarms immediately alerts the user, people working in the vicinity, and safety officers at the command center if a hazardous atmosphere has been detected or a person has been overcome.

Sensor Range Resolution
VOC 10.6eV Lamp 0 to 1000 ppm 1 ppm
Catalytic LEL 0 to 100% LEL 1% LEL
NDIR (0-100% LEL Methane) 0 to 100% LEL 1% LEL
NDIR (0-100% Vol. Methane) 0 to 100% Vol. 0.1% Vol.
Carbon Dioxide (CO2) NDIR 0 to 50,000 ppm 100 ppm
Ammonia (NH3) 0 to 100 ppm 1 ppm
Carbon Monoxide (CO) 0 to 500 ppm 1 ppm
Carbon Monoxide (CO), Ext. Range 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO), H2 - comp. 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO) + Hydrogen Sulfide (H2S) Combo 0 to 500 ppm CO / 0 to 200 ppm H2S 1 ppm CO / 0.1 ppm H2S
Chlorine (Cl2) 0 to 50 ppm 0.1 ppm
Chlorine Dioxide (ClO2) 0 to 1 ppm 0.03 ppm
Ethlyene Oxide (EtO-A) 0 to 100 ppm 0.5 ppm
Ethylene Oxide (EtO-B) 0 to 10 ppm 0.1 ppm
Ethylene Oxide (EtO-C), Ext. Range 0 to 500 ppm 10 ppm
Formaldehyde (HCHO) 0 to 10 ppm 0.01 ppm
Hydrogen (H2) 0 to 1,000 ppm 2 ppm
Hydrogen Chloride (HCl) 0 to 15 ppm 1 ppm
Hydrogen Cyanide (HCN) 0 to 50 ppm 0.5 ppm
Hydrogen Sulfide (H2S) 0 to 100 ppm 0.1 ppm
Hydrogen Sulfide (H2S) ext. range 0 to 1000 ppm 1 ppm
Methyl Mercaptan (CH3-SH) 0 to 10 ppm 0.1 ppm
Nitric Oxide (NO) 0 to 250 ppm 0.5 ppm
Nitrogen Dioxide (NO2) 0 to 20 ppm 0.1 ppm
Oxygen (O2) 0 to 30% Vol. 0.1% Vol.
Phosgene (COCl2) 0 to 1 ppm 0.02 ppm
Phosphine (PH3) 0 to 20 ppm 0.1 ppm
Phosphine (PH3) ex. range 0 to 1000 ppm 1 ppm
Sulfur Dioxide (SO2) 0 to 20 ppm 0.1 ppm
Size
  • Pumped model: 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)
  • Diffusion model: 6.9'' x 3.8'' x 2.2'' (175 x 96.5 x 56mm)
Weight
  • Pumped model: 31 oz. (880 g)
  • Diffusion model: 26.8 oz. (760g)
Sensors 30 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor
Battery
  • Rechargeable Li-ion ~12-hr. (pumped)/18-hr. (diffusion) runtime, < 6-hr. recharge time
  • Extended duration Li-ion ~18-hr. (pumped)/28-hr. (diffusion) runtime, < 9-hr. recharge time
  • Alkaline adapter with 4 x AA batteries ~6-hr. (pumped)/8-hr. (diffusion) runtime
Display Monochrome graphical LCD display (128 x 160) with backlighting. Automatic screen "flip" feature
Keypads 3 operation and programming keys (Mode, Y/+, and N/-)
Sampling Built-in pump or diffusion
Calibration Automatic with AutoRAE 2 Test and Calibration System or manual
Datalogging
  • Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
  • User-configurable datalogging intervals (from 1 to 3,600 seconds)
Communication and Data Download
  • Data download and instrument set-up and upgrades on PC via charging and PC comm. cradle, travel charger, or AutoRAE 2 Automated Test and Calibration System
  • Wireless data and alarm status transmission via built-in RF modem (optional)
Wireless Network RAE Systems Dedicated Wireless Network
Wireless Frequency ISM license-free bands
Wireless Range (Typical) 656 feet (200 meters)
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
Dust and Water Resistance IP-65 (pumped); IP-67 (diffusion)
Direct Readout
  • Real-time reading of gas concentrations; PID measurement gas and correction factor; battery status; datalogging on/off; wireless on/off and reception quality.
  • STEL, TWA, peak, and minimum values
Alarms

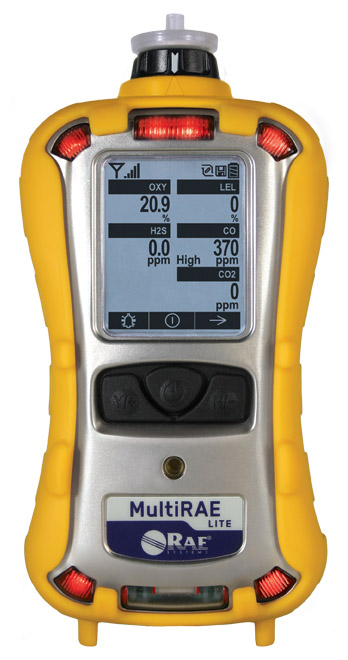

  • Wireless remote alarm notification; multi-tone audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions
  • Man Down Alarm with pre-alarm and real-time remote wireless notification
Hazardous Location Approvals
  • CSA: Class I, Division 1, Groups A, B, C and D, T4
  • ATEX: II 2G Ex ia d IIC T4 Gb
  • IECEx: Ex ia d IIC T4 Gb
CE Compliance (European Conformity) EMC directive: 2004/108/EC. R&TTE directive: 1999/5/EC. ATEX directive: 94/9/EC
EMI/RF No effect when exposed to 0.43mW/cm2 RF interference from a 5-watt transmitter at 12"
Performance Tests LEL CSA C22.2 No. 152; ISA-12.13.01
Languages Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, and Swedish
Warranty
  • Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors
  • One year on all other sensors, pump, battery, and other consumable parts
Images Part # Title Categories Price
MultiRAE Series Travel Charger M01-3021-000 M01-3021-000 MultiRAE Series Travel Charger AC Charger $101.00
RAE Systems Rechargeable Li-Ion Battery M01-3053-000 M01-3053-000 RAE Systems Rechargeable Li-Ion Battery Battery $217.00
RAE Systems External 25mm Filters (Pack of 10) 008-3022-010 008-3022-010 External 25 mm Filters (Pack of 10) Filter $34.00
RAE Systems External 25mm Filters (Pack of 100) 008-3022-100 008-3022-100 RAE Systems External 25mm Filters (Pack of 100) Filter $236.00
RAE Systems Chlorine Sensor C03-0978-000 C03-0978-000 RAE Systems Chlorine Sensor Gas Sensor $321.00
RAE Systems Hydrogen Cyanide Sensor C03-0949-000 C03-0949-000 RAE Systems Hydrogen Cyanide Sensor Gas Sensor $435.00
RAE Systems Ethylene Oxide (A) Sensor C03-0954-000 C03-0954-000 RAE Systems Ethylene Oxide (A) Sensor Gas Sensor $321.00
RAE Systems Ethylene Oxide (C) Extended Range Sensor C03-0923-100 C03-0923-100 RAE Systems Ethylene Oxide (C) Extended Range Sensor Gas Sensor $435.00
RAE Systems Ethylene Oxide (B) Sensor C03-0922-100 C03-0922-100 RAE Systems Ethylene Oxide (B) Sensor Gas Sensor $321.00
RAE Systems Hydrogen Sensor C03-0981-000 C03-0981-000 RAE Systems Hydrogen Sensor Gas Sensor $435.00
RAE Systems Oxygen Sensor C03-0942-000 C03-0942-000 RAE Systems Oxygen Sensor Gas Sensor $217.00
RAE Systems Ext. Range CO Sensor C03-0903-000 C03-0903-000 RAE Systems Ext. Range CO Sensor Gas Sensor $321.00
RAE Systems Methyl Mercaptan Sensor C03-0980-000 C03-0980-000 RAE Systems Methyl Mercaptan Sensor Gas Sensor $538.00
RAE Systems Nitrogen Dioxide Sensor C03-0975-000 C03-0975-000 RAE Systems Nitrogen Dioxide Sensor Gas Sensor $373.00
RAE Systems Formaldehyde Sensor C03-0982-000 C03-0982-000 RAE Systems Formaldehyde Sensor Gas Sensor $745.00
RAE Systems CO (H2 Compensated) Sensor C03-0979-000 C03-0979-000 RAE Systems CO (H2 Compensated) Sensor Gas Sensor $373.00
RAE Systems Carbon Dioxide Sensor C03-0961-000 C03-0961-000 RAE Systems Carbon Dioxide Sensor Gas Sensor $859.00
RAE Systems CO Sensor C03-0906-000 C03-0906-000 RAE Systems CO Sensor Gas Sensor $217.00
RAE Systems Nitric Oxide Sensor C03-0974-000 C03-0974-000 RAE Systems Nitric Oxide Sensor Gas Sensor $373.00
RAE Systems H2S Sensor C03-0907-001 C03-0907-001 RAE Systems H2S Sensor Gas Sensor $217.00
RAE Systems H2S Extended Range Sensor C03-0904-000 C03-0904-000 RAE Systems H2S Extended Range Sensor Gas Sensor $217.00
RAE Systems Phosphine Sensor C03-0976-000 C03-0976-000 RAE Systems Phosphine Sensor Gas Sensor $435.00
RAE Systems Combustible LEL Sensor C03-0911-000 C03-0911-000 RAE Systems Combustible LEL Sensor Gas Sensor $217.00
RAE Systems Ammonia Sensor C03-0950-000 C03-0950-000 RAE Systems Ammonia Sensor Gas Sensor $435.00
RAE Systems Sulfur Dioxide Sensor C03-0973-100 C03-0973-100 RAE Systems Sulfur Dioxide Sensor Gas Sensor $321.00
RAE Systems Chlorine Dioxide Sensor C03-0956-000 C03-0956-000 RAE Systems Chlorine Dioxide Sensor Gas Sensor $435.00
RAE Systems 10.6 eV PID Lamp C03-0912-003 C03-0912-003 RAE Systems 10.6 eV PID Lamp PID Lamp $435.00
