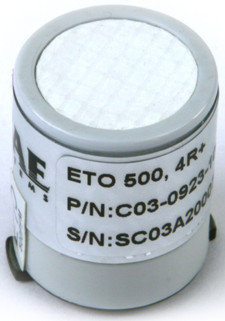

RAE Systems Ethylene Oxide (C) Extended Range Sensor C03-0923-100
RAE Systems Ethylene Oxide (C) Extended Range Sensor C03-0923-100
| Sensor Type | Electrochemical |
| Range | 0 to 500 ppm |
| Resolution | 10 ppm |
| Bias/Equilibration | Bias on; 6 hours after installation |
| Temperature Range | -4° F to 122° F (-20° C to 50° C) |
| Pressure Range | Atmospheric ±10% |
| Operating Humidity | 15 to 90% RH non-condensing |
| Drift | < 2% signal/month |
| Storage Life | 6 months in sealed container |
| Storage Temperature | 32° F to 68° F (0° C to 20° C) |
| Operating Life | 1 year in air |
| Warranty | 1 year from date of shipment |
| Calibration Gas | 40 ppm ETO, or equivalent of 100 ppm CO, balance air |
