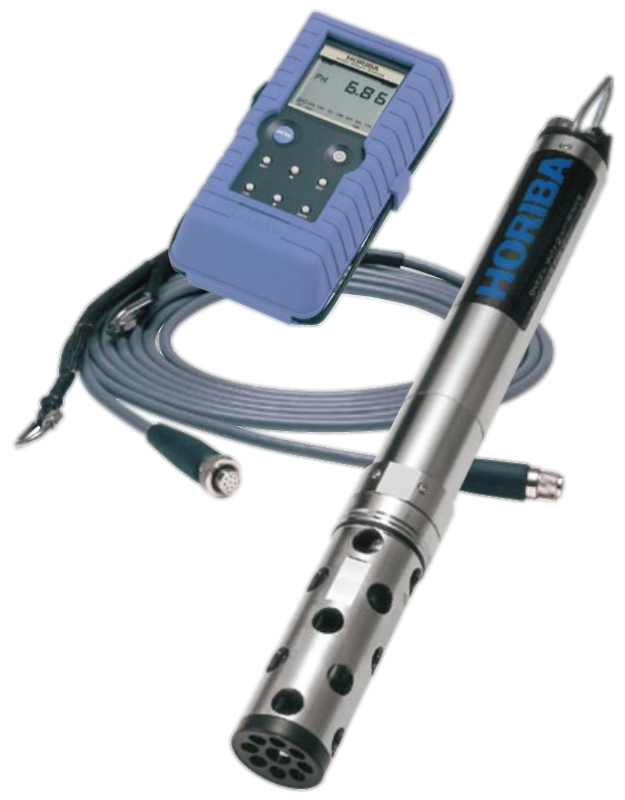

Horiba U-22 Water Quality Instrument Rental

Horiba

Horiba U-22 Water Quality Instrument Rental

  • Measures pH, conductivity, dissolved oxygen (DO), oxidation reduction potential (ORP), turbidity, temperature, salinity, total dissolved solids (TDS), and seawater specific gravity.
  • Slim design allows it to fit into 2" wells and larger.
  • Optional flow-through cell available for low flow sampling measurements.

We no longer offer this product. If available, suggested replacements will be listed below.

Years of Horiba sensor technology development have reached their culmination in the form of a 46-mm diameter sensor probe. These units offer a compact, highly accurate monitoring solution with high pressure tolerance, long term continuous measurement capabilities, waterproof construction, and monitoring of up to 10 parameters. The Horiba U-22 has Flow Cell capability making it perfect for low flow sampling events.

Parameter Range Resolution Repeatability Accuracy Measuring Principle
pH pH 0 to 14 0.01 pH ±0.05 pH ±0.1 pH Glass Electrode
Dissolved Oxygen 0 to 19.99 mg/L 0.01 mg/L ±0.1 mg/L ± 0.2 mg/L Diaphragm Galvanic Battery
Conductivity 0 to 9.99 S/m 0.1% of full scale ±1 % ±3 % 4 AC Electrode
Salinity 0 to 4 % 0.01 % ±0.1 % ±0.3 % Conductivity Conversion
Total Dissolved Solids 0 to 99 g/L 0.1% of full scale ±2 g/L ±5 g/L Conductivity Conversion
Seawater Specific Gravity 0 to 50 σ t 0.1 σ t ±2 σ t ±5 σ t Conductivity Conversion
Temperature 0 to 55 °C 0.01 °C ±0.3 °C ±1.0 °C Thermistor
Turbidity 0 to 800 NTU 0.1 NTU ±3 % ±5 % Penetration and Scattering
Water Depth 0 to 100 m 0.1 m ±3 % ±5 % Pressure
Oxidation Reduction Potential ± 1999 mV 1 mV ±5 mV ±15 mV Platinum Electrode
  • Horiba U-22 (Meter and Probe)
  • Battery Tool
  • Calibration Record
  • Calibration Cup
  • Auto Calibration Solution
  • Flow Cell (must request)
  • Carrying Strap
  • Instruction Manual
  • Hard Case
  • Probe Guard with Cover
  • Spare Batteries
