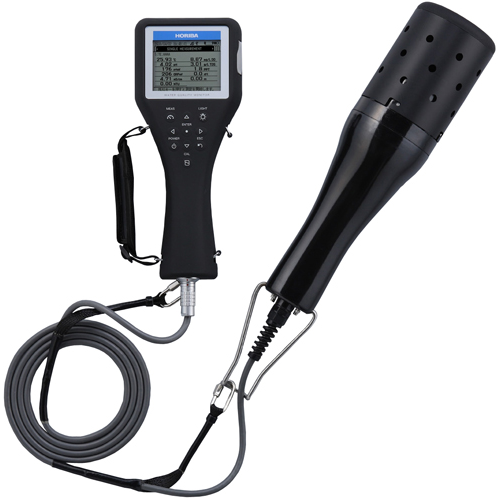

Horiba U-52 Water Quality Instrument Rental
Horiba U-52 Water Quality Instrument Rental
- Measures pH, conductivity, dissolved oxygen (DO), oxidation reduction potential (ORP), turbidity, temperature, salinity, total dissolved solids (TDS), and seawater specific gravity.
- Includes flow-through cell for low flow sampling measurements.
- Fits into 4" diameter wells and larger.
The U-50 Series Multi Water Quality Checker features an integrated control unit and sensors. It is capable of measuring multiple parameters simultaneously, and is perfect for use in the field. The U-50 Series is designed with on-site easeof- use in mind, provides a wide variety of functions, and can be used for water quality measurements and inspections of river water, groundwater, and waste water.
| Parameter | Range | Resolution | Precision | Measuring Principle |
|---|---|---|---|---|
| pH | pH 0 to 14 | 0.01 pH | ±0.1 pH | Glass Electrode Method |
| Dissolved Oxygen | 0 to 50.0 mg/L | 0.01 mg/L | Range Dependant | Polarographic Method |
| Conductivity | 0 to 9.99 S/m | Range Dependant | ±1% of full scale | 4 AC Electrode Method |
| Salinity | 0 to 70 PPT | 0.1 PPT | ±3 PPT | Conductivity Conversion |
| Total Dissolved Solids | 0 to 100 g/L | 0.1% of full scale | ± 5 g/L | Conductivity Conversion |
| Seawater Specific Gravity | 0 to 50 σ t | 0.1 σ t | ±5 σ t | Conductivity Conversion |
| Temperature | -10 to 55 °C | 0.01 °C | Not Listed | Platinum Temperature Sensor |
| Turbidity | 0 to 800 NTU | 0.1 NTU | ±5 % | LED forward 30° transmission/ scattering method |
| Oxidation Reduction Potential | ± 2000 mV | 1 mV | ±15 mV | Platinum Electrode Method |
- Horiba U-52 (Meter and Probe)
- Calibration Cup
- Flow-Through Cell
- Auto Calibration Soluion
- Calibration Record
- Probe Guard
- Hard Case
- Spare Batteries
- Instruction Manual
File
Horiba U-52 Manual
(1.81 MB)
File
Horiba U-52 Datasheet
(1.55 MB)
