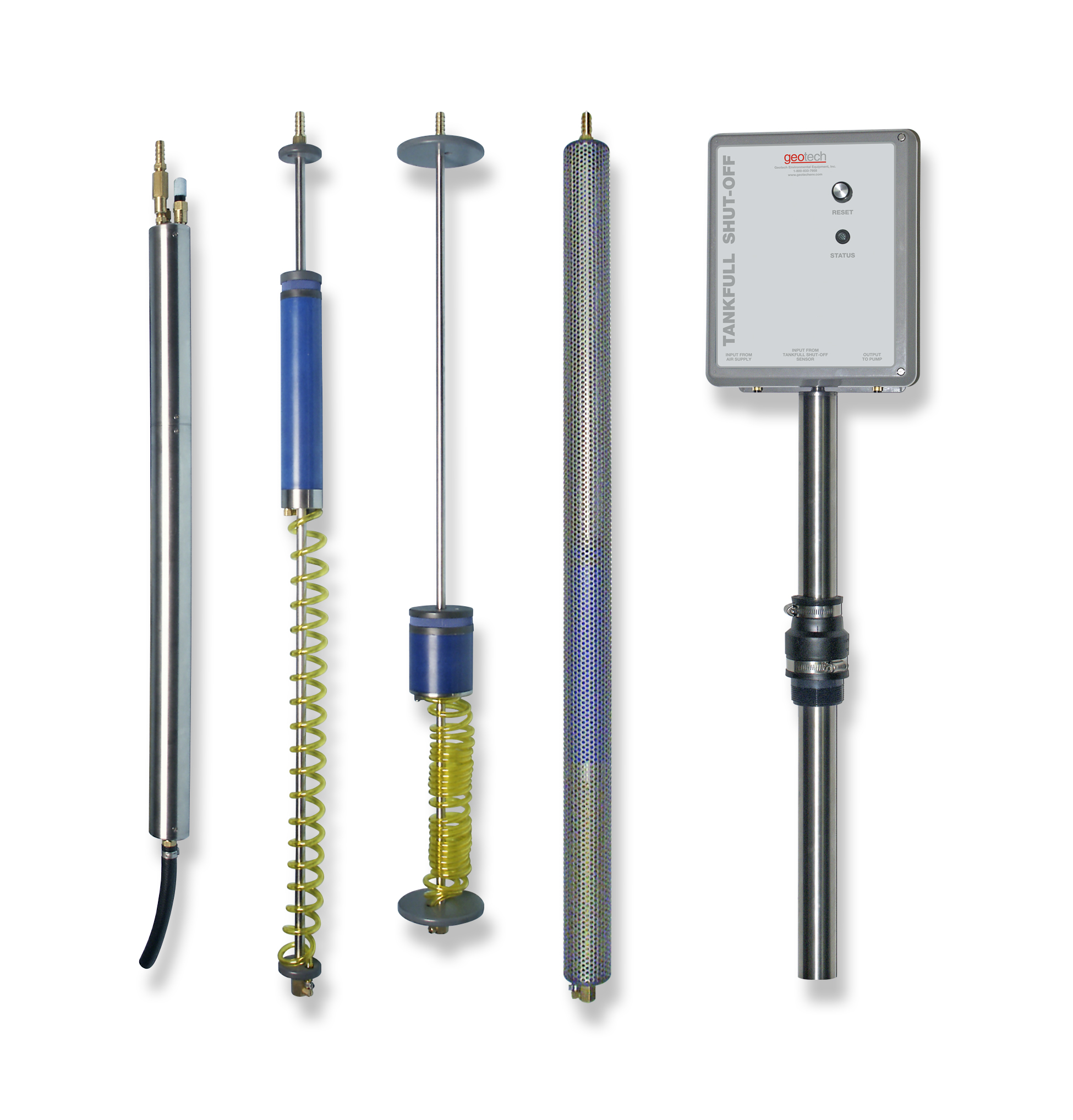

SpOILer Controllerless Pneumatic Product Skimmers

SpOILer Controllerless Pneumatic Product Skimmers

  • No external controller required.
  • Has a field adjustable cycle timer to optimize cycle rates and conserve energy.
  • High efficiency, ultra low energy use.
  • Quick set-up; only two lines to connect.
  • Different sizes/types of skimmers can be used with the standard pump for varying site conditions, including screened skimmers for extra protection.
  • Optional Tankfull Shut-Off.
  • Optional oil-less air compressor.

The SpOILer Controllerless Recovery System (CRS) is an efficient product recovery system designed to recover floating hydrocarbons from 2" (5cm) and larger wells and sumps. The SpOILer utilizes an internally regulated pneumatic bladder pump combined with a floating skimmer attachment. This system tracks water level fluctuations in excess of 16" (41cm) with the 4" (10cm) skimmer while removing product to a sheen. This system is extremely flexible for use at a variety of sites, with skimmers available to recover product ranging from gasoline to gear oil over several available travel ranges.

Spoiler Installation

The SpOILer controllerless pump operates at the most efficient intake discharge cycles with minimum
air consumption.

The system is flexible for use at different sites, with skimmers available to recover product ranging from gasoline
to gear oil and several travel ranges available.

Pump
Size 30.75" L x 1.75" (4.5cm) O.D.
Weight 5.8 lbs. (2.6 kg)
Materials Stainless steel and engineered plastics
Discharge Synthetic rubber
Air Line & Sensor Line Polyethylene, Nylon-11
Operating Pressure 60 psig (4 bar) minimum
80-100 psig (5.5-7 bar) recommended
Maximum Pressure 120 psig (8.3 bar)
Skimmer
  2" Model 4" Model
Effective Travel Range 12" (30cm) 16" (41cm)
Size 35.5" L x 1.75" O.D. (90cm L x 4.5cm O.D.)

With Optional Screen:
35.5" L x 1.88" O.D. (90cm L x 4.7cm O.D.)

35.5" L x 3.75" O.D. (90cm L x 9.5cm O.D.)

With Optional Screen:
35.5" L x 3.83" O.D. (90cm L x 9.7cm O.D.)

Weight 1.75 lbs. (.8 kg)

With Optional Screen:
3.0 lbs. (1.4 kg)

2.25 lbs. (1 kg)

With Optional Screen:
4.5 lbs. (2 kg)
