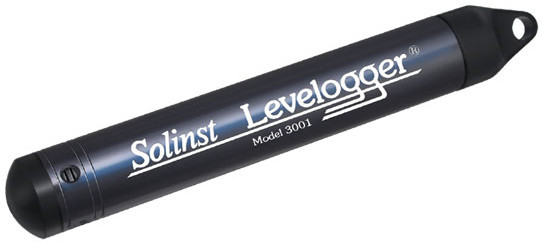

Solinst Levelogger Edge Model 3001
- Datalogs water level and temperature readings.
- Titanium based PVD Coating
- Stores up to 120,000 data points
- Hastelloy pressure sensor
- Improved temperature compensation and response time
The Levelogger Edge is a self contained water level datalogger, using infra-red data transfer powered by a 10 year lithium battery, offering the flexibility of installing by use of a Direct Read Cable, wireline or Kevlar cord. The Levelogger Edge has a memory capacity of 40,000 temperature and water level data points, or up to 120,000 using the compression algorithm in linear sampling mode.
The Levelogger Edge features a wide temperature compensated pressure range (0 to 50ºC, -10 to 50ºC for Barologger Edge), and rapid thermal response time. The Levelogger Edge has high resolution and an accuracy of 0.05% FS. The convenient Barologger Edge provides the easiest and most accurate method of barometric compensation.
Levelogger PC Software is streamlined, making it easy to program dataloggers, and to view and compensate data, in the office or in the field. The software has useful programming options, including compressed and repeat sampling, and future start/stop. Data compensation has been simplified, and allows multiple data files to be barometrically compensated at once.
|Level Sensor||Piezoresistive Silicon with Hastelloy Sensor|
|Ranges||15, 30, 65, 100, 300, 600 ft. (5, 10, 20, 30, 100, 200 m)|
|Accuracy||± 0.05% FS (Barologger Edge: ± 0.05 kPa)|
|Stability of Readings||Superior, low noise|
|Units of Measure||m, cm, ft., psi, kPa, bar, ºC. ºF (Barologger Edge: psi, kPa, mbar, ºC, ºF)|
|Normalization||Automatic Temperature Compensation|
|Temp. Comp. Range||0º to 50ºC (Barologger Edge: -10 to +50ºC)|
|Temperature Sensor||Platinum Resistance Temperature Detector (RTD)|
|Temp Sensor Accuracy||± 0.05ºC|
|Temp Sensor Resolution||0.003°C|
|Battery Life||10 Years - based on 1 reading/minute|
|Clock Accuracy||± 1 minute/year (-20ºC to 80ºC)|
|Operating Temperature||-20ºC to 80ºC|
|Max # Readings||40,000 readings FRAM memory, or up to 120,000 using linear data compression|
|Memory||Slate and Continuous|
|Communication||Optical Infrared Interface. Conversion to RS-232, USB, SDI-12. Serial at 19,200 bps, 38,400 bps with USB|
|Size||7/8" x 6.25" (22 mm x 159 mm)|
|Weight||4.6 oz. (129 grams)|
|Corrosion Resistance||Titanium based PVD coating|
|Other Wetted Materials||Delrin®, Viton®, 316L stainless steel, Hastelloy, Titanium based PVD coating|
|Sampling Modes||Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View|
|Measurement Rates||1/8 sec to 99 hrs|
|Barometric Compensation||Software Wizard and one Barologger in local area (approx. 20 miles/30 km radius)|
