Solar Sipper Pneumatic Product Skimmer
- Available in single or multi-well configurations
- Reduces the time and cost for a power line to be run to a site.
- Eliminates the need for electricians to do install work and permitting.
- The simple and safe low voltage system can be installed without special training or licensing and requires minimal experience.
- No trenching or transformer equipment is required.
- Relocating equipment to follow a plume or to adjust to new site characterization information is fast and easy.

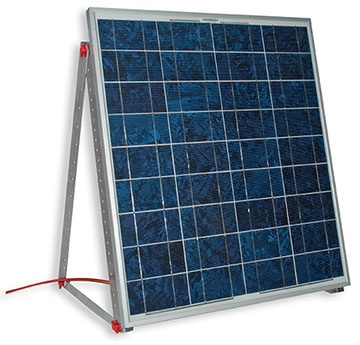

The Solar Sipper is a solar powered remediation system, designed for remote applications where electrical power is either not available or not economically feasible. This uniquely flexible system can be configured for up to eight wells. The compact, easy to install features make this unit efficient to move and implement multiple wells.

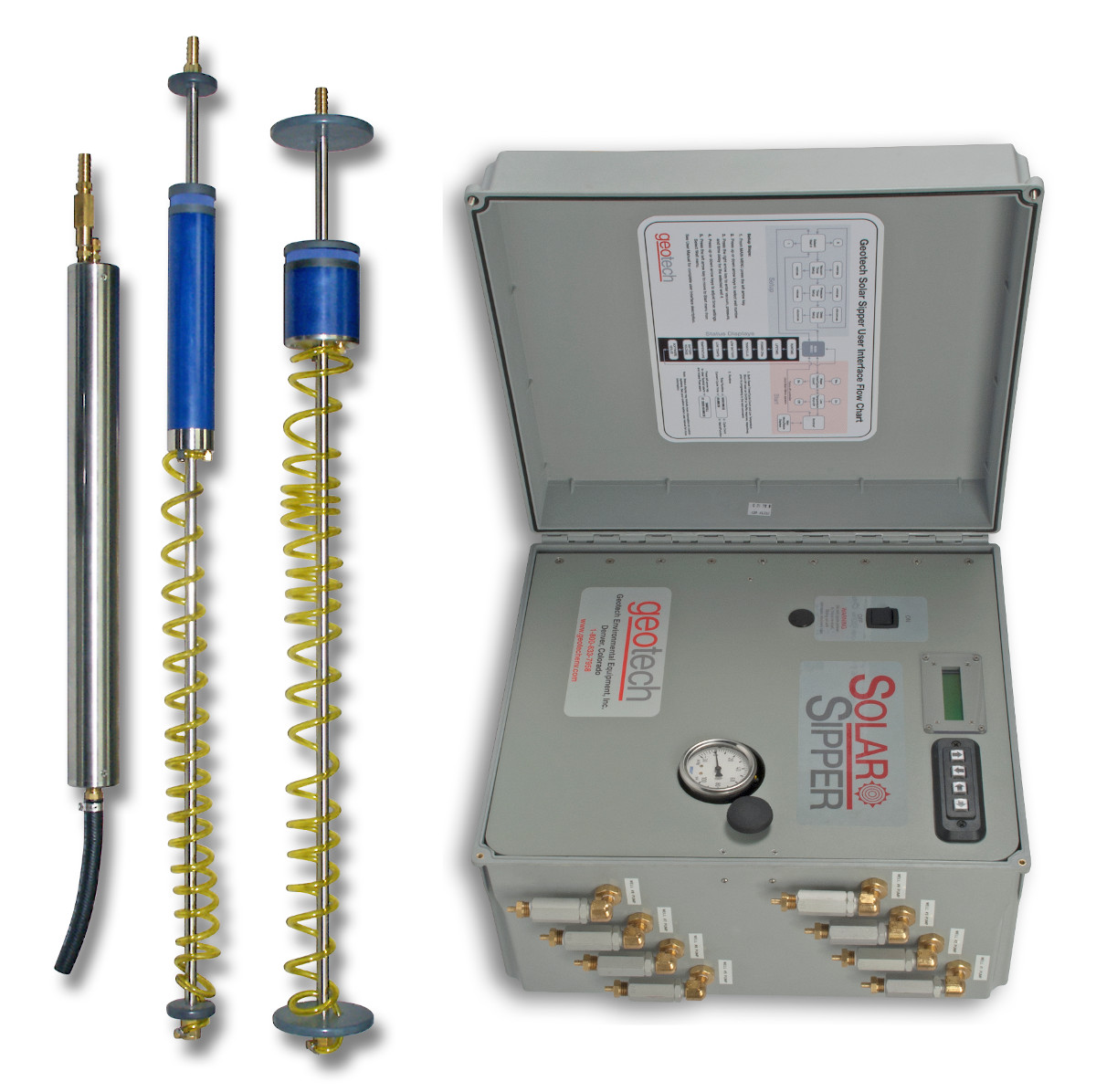

The Solar Sipper uses a unique downwell pump to recover hydrocarbons through a floating oleophilic hydrophobic intake filter. Once the pump canister is filled via the vacuum cycle, the pump reverses, pressurizes the system and pumps the recovered fluid to the surface and into a storage vessel.
The Solar Sipper can effectively extract fluids from depths to 180 feet below ground surface and recover viscous hydrocarbons such as 90 weight oil when our heavy oil skimmer is utilized.
The Solar Sipper recovers floating hydrocarbons (LNAPL) from wells using a solar powered pressure/vacuum pump. The standard Skimmer features a unique product intake assembly that incorporates both a density float and an oleophilic/hydrophobic filter that differentiates between floating hydrocarbons and water. The skimmer floats just above the oil/water interface to collect and remove hydrocarbons from the well into an optional above ground storage tank.
The Solar Sipper is also available for recovery of sinking product (DNAPL) from wells when using a fixed intake.
Applications | 2" (50 mm) or larger recovery wells |
---|---|
Recovery Rate | 0.2 gallons (757 ml) per cycle |
Max Operating Depth | 180 feet (55 m) |
Power Requirements | 12-15 Volts DC input @ up to 14.5 Amps 90 ~ 240 Watts continuous |
Max Pressure | 100 PSIG (7 bar) |
Max Vacuum | 20" Hg @ MSL (50 mm Hg) |
Oil/Water Separation | Oleophilic/hydrophobic mesh screen |
Operating Temperature | 32° to 104°F (0° to 40°C) |
---|---|
Storage Temperature Range | -20° to 150°F (-29° to 66°C) |
Humidity | 90% non-condensing (max.) |
Size | 10" D x 18" T x 16" W (25.4cm D x 45.7cm T x 40.6cm W) |
Approx. Weight | 34 lbs. (15.4kg) single channel 49 lbs. (22.2 kg) eight channel |
Rating | NEMA 3R |
Rated Power | 100 Watts (standard unit) |
---|---|
Operating Voltage | 17.4 Volts DC |
Max Voltage | 21.5 Volts DC |
Operating Amperage | 4.88 Amps (standard unit) |
Max Amperage | 5.8 Amps |
Size | 43.31" H x 28.15" W x 3.15" (110 cm H x 71.5 cm W x 8 cm) |
Approx. Weight | 19.62 lbs. (8.9 kg) |
Size | 23.5" L x 1.75" OD (59.7cm L x 4.4cm OD) |
---|---|
Weight | 4.5 lbs. (2.04 kg) |
Materials | 303 and 304 Stainless Steel, Flexible Rubber Tubing, PVC, Brass |
2" Model | 4" Model | |
---|---|---|
Effective Travel Range | 12" (30.5cm) | 24" (61cm) |
Size | 35.5" L x 1.75" OD (90.2cm L x 4.4cm OD) | 35.5" L x 3.75" OD (90.2cm L x 9.5cm OD) |
Weight | 1.75 lbs. (.79 kg) | 2.25 lbs. (1.02 kg) |
Operating Temperature | 32° to 104°F (0° to 40°C) | |
Storage Temperature | -20° to 150°F (-29° to 66°C) | |
Materials | 304 Stainless Steel, Polyethylene, PVC, Polypropylene, Brass |
Air | .17" ID x .25" OD (4.3mm ID x 6mm OD) |
---|---|
Discharge | .375" ID x .5" OD (9.5mm ID x 12.7mm OD) |
