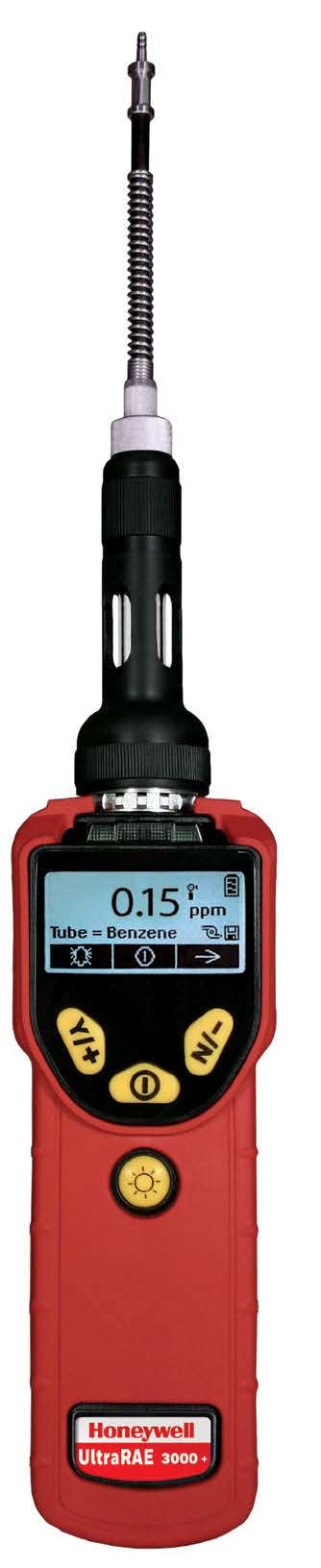

RAE Systems Honeywell UltraRAE 3000 Benzene PID Monitor
RAE Systems by Honeywell

RAE Systems UltraRAE 3000 Benzene PID Monitor Rental

  • Volatile Organic Compound (VOC) measurement 0 to 10,000 ppm (in VOC mode)
  • Benzene and Butadiene measurement 10 ppb to 200 ppm (in Tube mode with 9.8 eV Lamp)
  • Built-in humidity sensor for accurate readings
  • Integrated sampling pump 400 cc/min, sample from 100' away.
NOTICE: RAE-Sep tubes not included with rental and must be purchased.
SKU
RN-RAE-UR3K
Rental Rates
Daily Weekly Monthly
$148.00 $448.00 $1,331.00
Buy This Product
Accessories

The UltraRAE 3000 is the most advanced compound-specific monitor on the market and one of the few monitors that deliver accurate measurement of benzene from 10 ppb to 200 ppm and other VOCs up to 10,000 ppm.

A 60-second response for a benzene measurement snapshot and a unique 15-minute benzene STEL measurement provide excellent versatility for entry pre-screening, marine spill response, and refinery down-stream monitoring.

Gas Range Resolution Response Time
VOCs 0 to 99.99 ppm 0.010 ppm < 3 sec (T90)
VOCs 100 to 999.9 ppm 0.1 ppm < 3 sec (T90)
VOCs 1000 to 9999 ppm 1 ppm < 3 sec (T90)
Benzene 0 to 200 ppm 0.010 ppm < 60 sec (T90)
Butadiene 0 to 200 ppm 0.010 ppm < 60 sec (T90)
Size 10" L x 3.0" W x 2.5" H (25.5 x 7.6 x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 9.8 eV or optional 10.6 eV or 11.7 eV lamps
Battery - Rechargeable, external field-replaceable lithium-ion battery pack
- Alkaline battery adapter
Operating Hours 16 hours of operation
Display 4 lines, 28 x 43mm
Keypads 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout • VOCs as ppm by volume
• High and low values
• STEL and TWA
• Battery and shutdown voltage
• Date, time, temperature
Alarms • 95dB buzzer (at 12"/30 cm) and flashing red LED to indicate exceeded preset limits
• High: 3 beeps and flashes per second
• Low: 2 beeps and flashes per second • STEL and TWA: 1 beep and flash per second
• Alarms latching with manual override or automatic reset
• Additional diagnostic alarm and display message for low battery and pump stal
EM/RFI Highly resistant to EMI/RFI Compliant with EMC Directive 2004/108/EC
IP Rating IP-65, unit running
Data Logging Standard 6 months at one-minute intervals
Calibration 2-point or 3-point calibration for zero and span. Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump • Internal, integrated flow rate at 400 cc/min
• Sample from 100' (30m) horizontally and vertically
Low Flow Alarm Auto shut-off pump at low-flow condition
Communications • Download data and upload instrument set-up from PC through charging cradle or optional Bluetooth™
• Wireless data transmission through built-in RF modem
Wireless Network Mesh RAE Systems Dedicated Wireless Network
Wireless Range EchoView Host: LOS > 660 ft (200 m)
ProRAE Guardian & RAEMesh Reader: LOS > 660 ft (200 m)
ProRAE Guardian & RAELink3 Mesh: LOS > 330 ft (100 m)
Safety Certifications
  • US and Canada: Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
  • Europe: ATEX II 2G EEx ia IIC T4
Temperature -4° to 122° F (-20° to 50° C)
Humidity 0% to 95% relative humidity (non-condensing)
Attachment Durable bright red rubber boot
Warranty 3 years for 10.6 eV lamp, 1 year for 9.8. eV lamp, pump, battery, sensor and instrument
Wireless Frequency ISM license-free band. IEEE 802.15.4 Sub 1GHz
Wireless Approvals FCC Part 15, CE R&TTE, Others
Radio Mode Supports Bluetooth or RM900
  • UltraRAE 3000 PID (9.8 eV Lamp)
  • Data Download Cable
  • Charcoal Zero Adapter
  • Calibration Record
  • PC Software
  • Battery Charger and Cradle
  • Instruction Manual
  • Carrying Case
  • Spare Water Trap Filter
