Product Recovery Canister Passive Skimmers
Product Recovery Canister Passive Skimmers
- 2" (0.125, 0.25, 0.5 and 1 liter) and 4" (1, 3 and 4 liter) models available
- Oleophilic/Hydrophobic filter buoy recovers product without taking in water
- Quick fill time –about 15 minutes with ample product
- Protected easy release drain valve
- Able to convert to active recovery systems

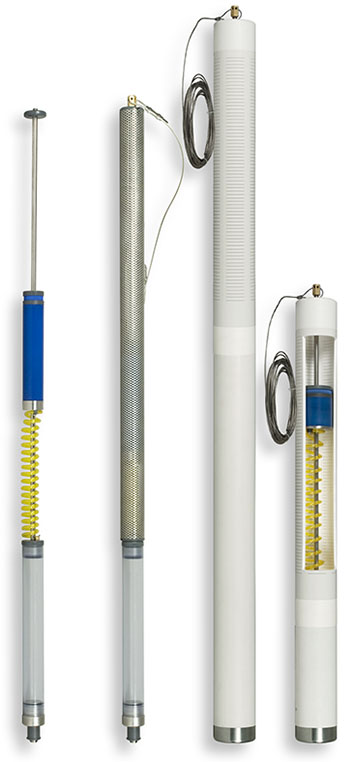

The PRC (Product Recovery Canister) is a passive skimmer with a floating intake that separates and recovers light hydrocarbons from groundwater. The PRC collects floating product down to a sheen then is emptied through a discharge valve at the bottom of the canister after being raised to the surface.
2" PRC
- 12" (30.5 cm) effective buoy travel
- 4 recovery capacities: .125, .25, .5 and 1 liter
- Transparent recovery canister
- 2" (5 cm) or larger monitoring well applications
- Optional protective screen
4" PRC
- 16" (40.6 cm) effective buoy travel
- 3 recovery capacities: 1, 3 and 4 liter
- 4" (10 cm) or larger monitoring well applications
- Buoy protected in 0.020 (.5mm) slot PVC screen
| 1 Liter | 3 Liter | 4 Liter | |
|---|---|---|---|
| Dimensions | 37.0" L x 3.5" OD (94cm x 9cm) |
53.0" L x 3.5" OD (135cm x 9cm) |
60.0" L x 3.5" OD (152cm x 9cm) |
| Empty Weight | 8 lbs. (3.7kg) | 15 lbs. (6.8kg) | 16 lbs. (8.2kg) |
| Full Weight | 9.5 lbs. (4.3kg) | 19 lbs. (8.6kg) | 25.5 lbs. (11.6kg) |
| Capacity | .26 gal. | .8 gal. | 1.06 gal. |
| Min. Water Depth Required | 18.5" (47cm) | 35.0" (89cm) | 43.0" (109cm) |
| Materials (All | Stainless steel, brass, and engineered plastics | ||
| 0.125 Liter | 0.25 Liter | 0.5 Liter | 1 Liter | |
|---|---|---|---|---|
| Dimensions With Screen |
43.5" L x 1.75" OD (110cm x 4.4cm) 43.5" L x 1.88" OD (110cm x 4.8cm) |
49.0" L x 1.75" OD (149cm x 4.4cm) 49.0" L x 1.88" OD (149cm x 4.8cm) |
59.5" L x 1.75" OD (151cm x 4.4cm) 59.5" L x 1.88" OD (151cm x 4.8cm) |
82.5" L x 1.75" OD (210cm x 4.4cm) 82.5" L x 1.88" OD (210cm x 4.8cm) |
| Empty Weight With Screen |
2.9 lbs. (1.3kg) 4.3 lbs. (2.0kg) |
3.1 lbs. (1.4kg) 4.5 lbs. (2.0kg) |
3.5 lbs. (1.6kg) 4.9 lbs. (2.2kg) |
5.2 lbs. (2.4kg) 6.6 lbs. (3.0kg) |
| Full Weight With Screen |
3.1 lbs. (1.4kg) 4.5 lbs. (2.1kg) |
3.5 lbs. (1.6kg) 4.9 lbs. (2.2kg) |
4.3 lbs. (2.0kg) 5.7 lbs. (2.6kg) |
6.7 lbs. (3.0kg) 8.1 lbs. (3.7kg) |
| Capacity | 0.035 gal. | 0.07 gal. | 0.13 gal. | 0.26 gal. |
| Minimum Water Depth Required | 23.5" (60cm) | 29.0" (74cm) | 39.5" (100cm) | 62.0" (157cm) |
| Materials (All) | Stainless steel, brass, and engineered plastics | |||
