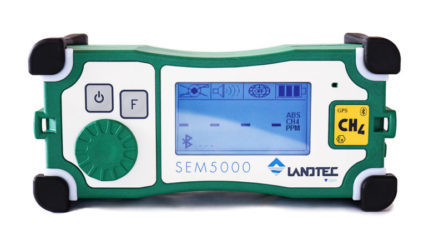

Landtec SEM5000 Portable Methane Monitor Rental

  • Measures methane (CH4) from 0.5 ppm to 100% concentration.
  • Built-in pump with 0.6 to 1 liter/minute flow rate.
  • Built-in GPS with 2 to 4 meters accuracy.
  • Bluetooth capability.
  • Rechargeable Lithium-Ion battery with up to 10 hour runtime.
  • IP65 / NEMA4 enclosure protection level.
  • Includes SEMsoft software package.
NOTICE: The SEM5000 requires methane and zero air gases for each rental.
Rental Rates
Daily Weekly Monthly
$304.00 $828.00 $2,482.00
The Landtec SEM5000 measures methane concentrations for applications such as landfill surface emissions monitoring, leakage surveys of natural gas networks, control pinpointing outside buildings, quantifying methane fluxes, and laboratory applications for gas analysis.

The patented Laser technology allows the instrument measure methane exclusively, even in the presence of other gases or hydrocarbons.  The monitor has a measurement range from 0.5 ppm to 100% methane concentration.  The laser technology provides exceptional response times with a T90 of 2.5 seconds (3.5 seconds with probe).

For data collection, the meter can hold up to 480 hours of scan data.  During a scan event, the SEM5000 automatically saves a reading every second and records the date, time, GPS coordinates and methane concentration.  Save intervals and the auto-save function are configurable.

The user-friendly SEMsoft software package provides multiple reporting options. It auto-populates standard Background, Precision and Instrument Response Time reports. Scan data is reported in an easy-to-use CSV format. SEMsoft also provides options for individual exceedance reports. SEMsoft also allows you to upload site maps, for recording and accessing historical scan data specific to your site. Scan paths and color-coded event points can be layered on top of your site map, allowing you to monitor potential problem areas.
Target Gas Methane (CH4)
Measurement Ranges 1-10000 ppm 0.1% - 100% v/v (option)
Sensitivity 1 ppm
Threshold of Sensitivity 0.3 ppm
Accuracy - +/-0.7ppm for [1 ; 10ppm]
- +/-10% relative up to 10000
Response Time - T90 = 2.5 seconds
- T90 = 3.5 seconds with probe
Environmental Working Conditions - Humidity : from 5% to 80% relative humidity
- Temperature : -25°C to +50°C
- In a non-condensing atmosphere
- Pressure : Atmospheric pressure 1013mb ±100mb
Power Supply - Specific Li ion rechargeable battery pack
- 3.7V – 4000mA/h
- Recharging duration: 4 hours 30 min
Autonomy - 10 hours at 20°C (with backlight activated)
- 8 hours at extreme temperatures with backlight activated
Case - Carbon reinforced polyamide with fiberglass
- Dimensions: L x w x h = 229 x 97 x 109mm
- Weight: 1.3Kg (in operation)
Protection Level IP65
Environmental Storage Conditions (excluding batteries) - Humidity : < 95% relative humidity
- Temperature : -40°C to +60°C
Sampling Flowrate 0.8 l/min.; [0.6 ; 1l/min.]
User Interface - Large Display: matrix of 240x128
- Selector Dial: Scroll menu for a rapid and easy selection
- 3 Keys for a direct activation of the functions
Alarms - Threshold of the methane concentration
- Pump stopped
Buzzer Sound Level (30cm) 85 dB (A)
Device Status Indicators - Measurement mode
- Battery level
- Pump
- Communication
Electrical Connections - Multiplug for battery charger and for communication with a computer
- Equipped with a security ring
Gas Connections - Quick-connect gas inlet coupling with locking mechanism: suction rod on the right side
- Quick-connect gas outlet coupling
Carrying Straps Synthetic band, 30mm
  • SEM5000 Portable Methane Detector
  • SEMsoft Software Package
  • Protective Hard Shell Carrying Case
  • Soft Carrying Case with Strap
  • Telescoping Probe Handle with Windscreen Tip
  • Water Filter
  • Dust Filter
  • Brass Dust Filter
  • Battery Charger
