Insitu TROLL 9500 Professional XP Rental
In-Situ

Insitu TROLL 9500 Professional XP Rental

  • Smart Sensors that are 'Plug and Play' remember calibration
  • Dissolved Oxygen -- Constant Power for Maximum Accuracy
  • Single "Quick-Cal" solution -- calibrate most sensors at the same time!
  • Pre-Calibrated and ready to use -- Ready to use right out of the box!
  • Internal datalogger with up to 4MB (1,760,000 data points!) (Professional XP Only)
  • User-replaceable, powerful D batteries provide maximum power -- up to 6 months.
  • Vented Quick-Connect cable (FEP) -- Fully detachable!
  • Internal barometric sensor -- record real-time barometric changes

Discontinued

We no longer offer this product.

If available, alternative products will be listed below.

Replacement Items

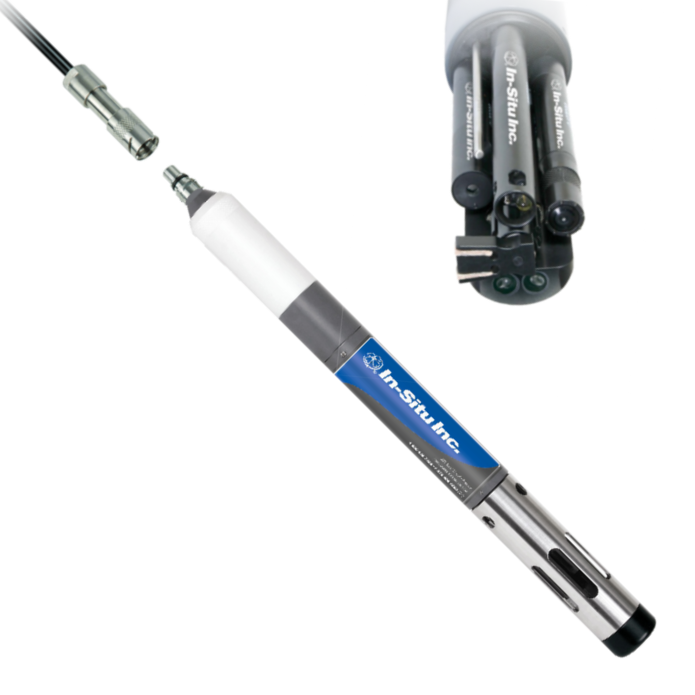

The TROLL® 9500 water quality instrument simplifies multiparameter monitoring. The TROLL 9500 is a powerful, portable unit that houses up to nine water quality sensors, internal power, and each rental includes the durable RuggedReader® handheld PC for data logging capabilities.

Parameter Range Resolution Accuracy Measuring Principal
pH pH 0 to 12 0.01 pH ±0.1 pH Glass sensing bulb, single-junction electrode, replaceable ceramic junction, refillable reference electrolyte
Dissolved Oxygen 0 to 20 mg/L, 0 to 200% saturation 0.01 mg/L ±0.2 mg/L Clark polarographic
Conductivity 5 to 20,000 ?S/cm Range-dependent ± 0.5% or 2 μS/cm (whichever is greater) 4-cell conductivity, AC drive
Salinity -------- ------- ------- Conductivity Conversion
Temperature -5°C to 50°C 0.01 °C plusmn;0.1 °C Platinum resistance thermometer
Turbidity 0-2000 NTU 0.1 NTU ± 5% or 2 NTU (whichever is greater) Nephelometer, 90° light scattering, 870 nm LED, solid-state
Barometric Pressure 0-16.5 psia (854 mm Hg, 33.6 in Hg) 0.1 mm Hg, 0.01 in Hg ± 0.3% FS (2.54 mm Hg, 0.1 in Hg) Piezoresistive silicon pressure sensor
Oxidation Reduction Potential ± 1400 mV 1 mV ± 4 mV Platinum Wire
  • TROLL 9500 Water Quality Meter
  • WinSitu 5 Software
  • Cable Connection Adapter
  • Flow Cell
  • RuggedReader®
  • Instruction Manual
  • Spare Batteries
  • PC Data Cable
  • EEI Calibration Record
  • Quick Calibration Solution
  • Calibration Cup
  • Probe Guard
  • Hard Case
  • Cables (50 & 100ft increments)
