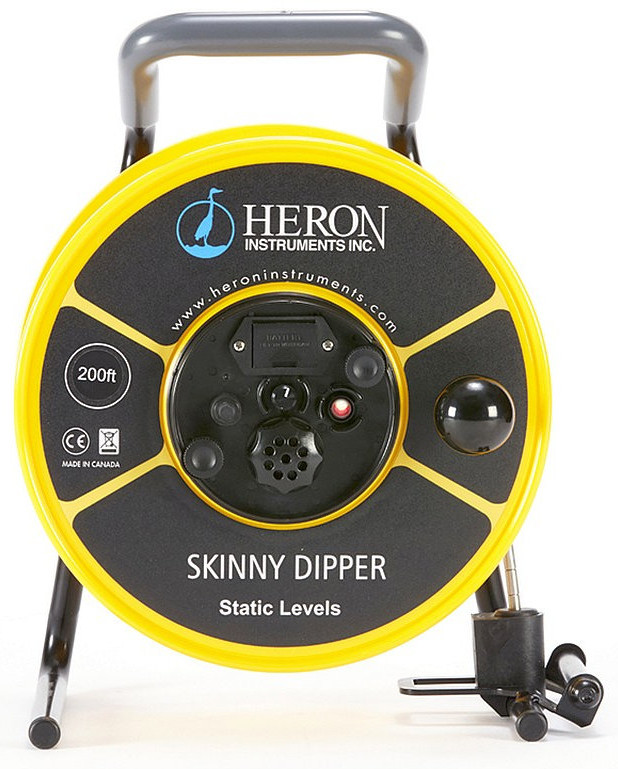

Heron Skinny Dipper Water Level Meter Rental

Heron

Heron Skinny Dipper Water Level Meter Rental

SKU
HERON-S-300
  • 1/4" probe fits into the smaller wells.
  • 1/4" slim extruded polyethylene tape.
  • 300 feet tape length.
  • Static water level mode.
Daily Weekly Monthly
$35.00 $100.00 $250.00

The Skinny Dipper water level meter is ideal for measuring static water levels in narrow wells, boreholes, tubes and piezometers. The slim line tape and ¼” probe enable users to take readings while the pump is still in the well, whereas wider tapes may get tangled. The premium padded carry case comes included to protect your precision instrument from the elements.

The ¼” polyethylene tape, available in metric (mm) or engineering scale (1/100’), is marked with black and red graduations, making measurements easy to read in the field.

  • Electronic Module (IP65) – removable for easy cleaning and servicing. Circuits and components are potted to protect from moisture and dust intrusion
  • Sensitivity Switch – to adjust for false signals from cascading water
  • Probe (IP68) – ¼” fully submersible up to 100m/300’ for 20 minutes
  • Tape – ¼” extruded polyethylene tape – markings in metric (mm) or engineering scale (1/100’)

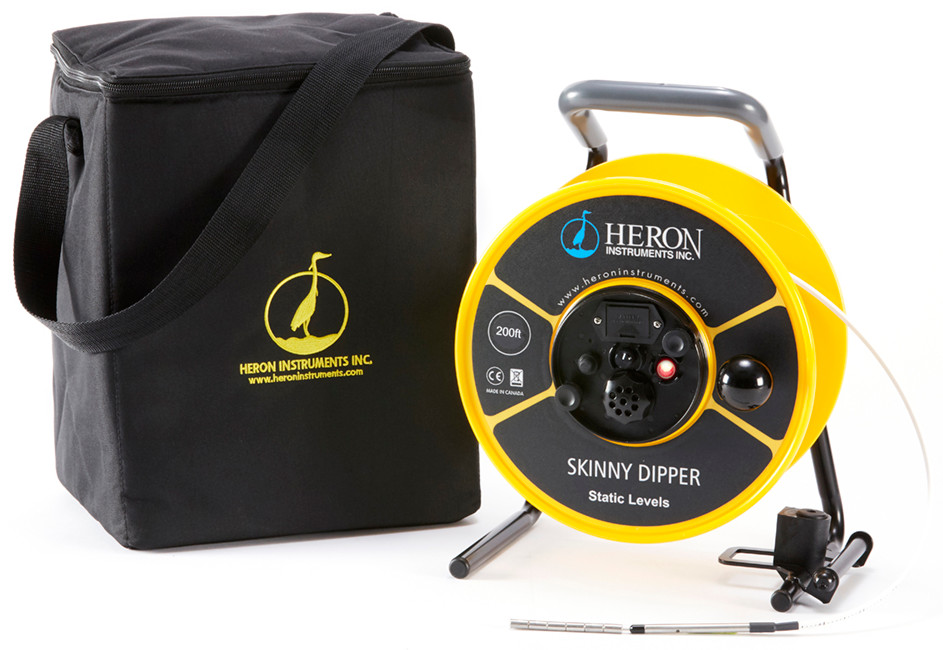

  • Padded Carry Case – to protect your precision water level meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deployment
  • Tape Guide – built in, to protect the tape from sharp edges on the well casing
  • Vinyl Holding Grip – molded to the frame, ergonomic easy grip
  • Winding Handle – custom made for easy rewinding with gloved hands
  • Heron Skinny Dipper Water Level Meter
  • Nylon Carrying Bag
  • Instruction Manual
  • Spare Battery
Reel Assembly Standard
Height 36 cm (14.2")
Depth 21 cm (8.3")
Width 29 cm (11.4")
Weight (Reel Assembly Only) 2.30 kg (5.1 lbs)
Plate Size 26.67 cm (10.5")
Plate Material Nylon
Brake Ergonomic Dial
Hanger Included on frame leg
Tape Guide Included on frame leg
Test Points On back of frame
Tape
Tape Polyethylene
Jacketing No
Conductors 7 strand (4 S/S & 3 copper)
Markings Metric or Engineering Scale - Under Jacketing
Width 6.35 mm (0.25")
Dog Bone Profile No
Break Strength
Probe
Weight 32 g (0.070 lbs)
Length Probe 70 mm (3.5") with weights 180 mm (9")
Diameter 6.35 mm (0.25")
Removable No
Depth Rating Up to 100 m / 300 ft for 20 min.
Wetted Material S/S & Delrin
Electronic Panel
Operating Mode Static
Power Source 9 Volt alkaline
Sensitivity Control S/S & Aluminum
Audio / Visual Indication Ultra bright LED & 80 dBi buzzer
Rating IP65
Removable Yes
Maximum Temperature 80°C
