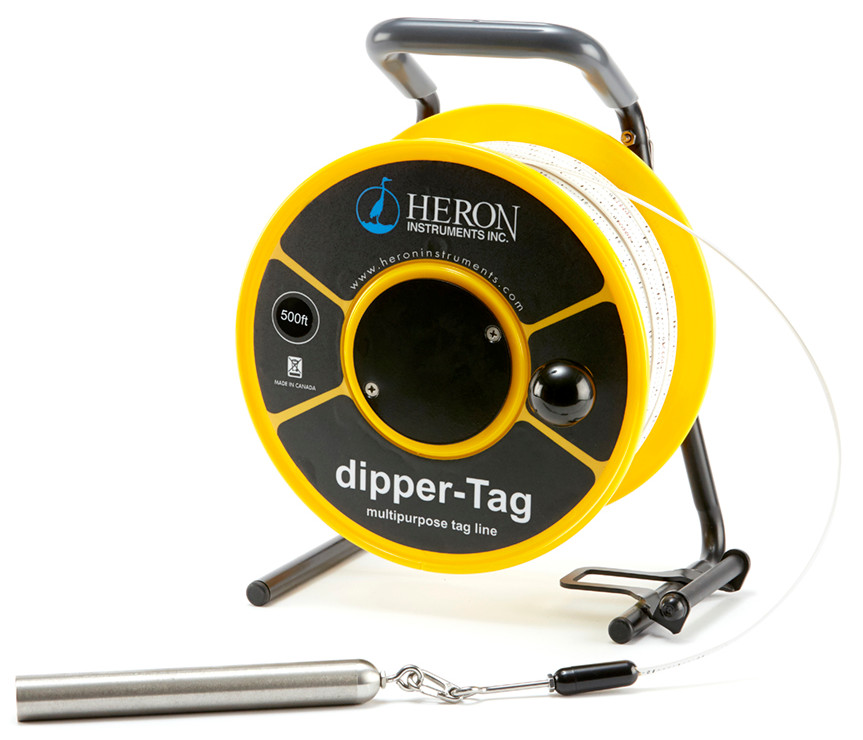

Heron Dipper-Tag Multi-Purpose Meter

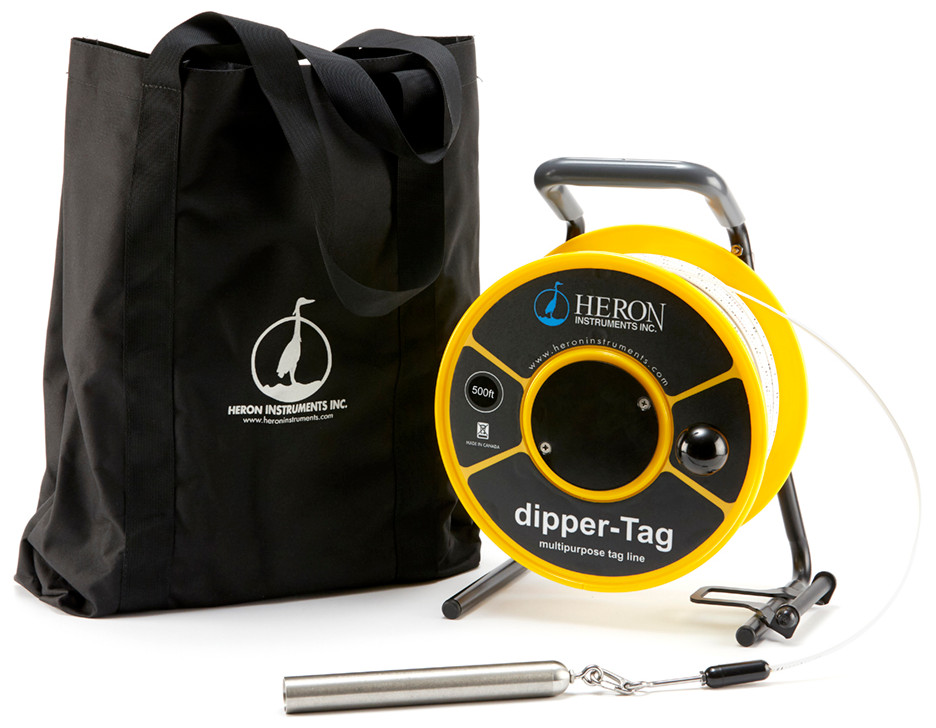

Heron Dipper-Tag Multi-Purpose Meter with Bag

Heron Dipper-Tag Multi-Purpose Meter

  • Multi-Purpose: Measures water level elevation, bottom of a well, or the depth to the top of a bentonite layer or backfill sand.
  • Available in 150m or 500ft length.
  • Polyethylene, reinforced with Kevlar tape.
  • 316 grade Plopper/Weight, 750 grams.

The economical dipper-Tag is a multi-purposeunit designed for use when installing or monitoring wells. The 316 grade s/s weighted plopper that comes with the dipper-Tag can be used for measuring to the bottom of a well, or the depth to the top of a bentonite layer or backfill sand. The plopper can also be used to measure to the top of the water level acoustically.

The spring release clip allows the user to exchange the plopper to other available accessories such as the dipperLogs to measure water levels and temperature for short term analysis. The dipper-Tagcan also be used with third party accessories, i.e bailers for water sampling.

Available in one tape length, 500’ or 150m.

  • Spring Release Clip – forged stainless and chrome plated
  • Plopper/Weight– 316 grade stainless steel, 750 grams
  • Tape – polyethylene, reinforced with Kevlar – markings in metric (mm) or engineering scale (1/100’)
  • Carry Bag – to protect your water level meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deployment
  • Tape Guide – built in, to protect the tape from sharp edges on the well casing
  • Vinyl Holding Grip – molded to the frame, ergonomic easy grip
  • Winding Handle – custom made for easy rewinding with gloved hands
Reel Weight 2.4 Kg (5.29 lbs)
Height 356 mm (14")
Width 279 mm (11")
Depth 241 mm (9.5")
Weight Weight 750 g (1.65 lbs)
Weight Length 116.84 mm (4.6")
Weight Diameter 25.4 mm (1")
Depth Rating Length of Tape
Wetted Materials Stainless Steel, ABS
Tape Polyethylene
Tape Markings Engineering Scale or Metric
Limited Warranty 3 Years
