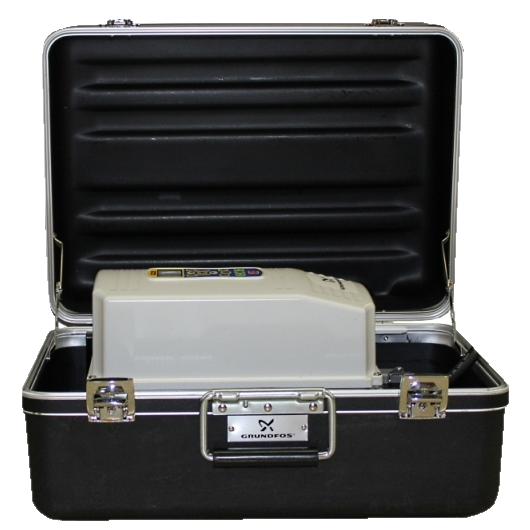

Grundfos Redi-Flo Controller Rental
Grundfos Redi-Flo Controller Rental
- For use with Grundfos Redi-Flo 2 and Redi-Flo 4 pumps.
- Power requirement: 115V AC
- Variable Frequency Drive (VFD) controller allows for fine tuning flow speed.
Accessories
The Grundfos Redi-Flo Variable Frequency Drive is required to power and regulate the flow rate of the Redi-Flo 2 and Redi-Flo 4 submersible pumps. The unit accepts 115V or 230V sources. The default setup for the Redi-Flo VFD is 115V, 230V setup requires wiring changes at the input power terminals.
| Input Voltage |
|
|---|---|
| Output Voltage | 3 x 220V (RF2) |
| Acceleration Time | 0.5 – 3600 Seconds |
| Deceleration Time | 0.5 – 3600 Seconds |
| Accel/Decel Pattern | Linear |
| Enclosure Rating | UL Type 4, No Direct Sunlight |
| Ground Fault | Ground Fault Detection For Equipment Protection |
| Overcurrent | Output Short Circuit Locked Rotor |
| Over Voltage | 400 VDC |
| Under Voltage | 200 VDC |
| Line Start Lock Out | VFD Will Not Start Upon Input Power Application. |
| Operating Temperature | -10 to 40 degrees C |
| Storage Temperature | -30 to 65 degrees C |
| Elevation | 3300 Feet Without Derating |
| Dimensions of Case | 18.5" x 14" x 9" |
| Weight | 36 Pounds |
| Case | High Density Polyethylene |
| Trim | Aluminum |
| Lock | Chrome-plated Clasp |
- Redi-Flo VFD Controller
- Instruction Manual
File
Redi-Flo VFD User Manual
(188.61 KB)
