Casella Apex Pro Air Sampling Pump Rental

Casella

Casella Apex Pro Air Sampling Pump Rental

SKU
APEXPRO
  • Flow range: 0.8 to 5 L/min; 5 to 850 mL/min with low flow adaptor.
  • Datalogging capability: start/stop time, flow rate, volume sampled, temperature
  • Battery life: 10-40 hours depending upon pressure load.
Daily Weekly Monthly
$25.00 $60.00 $180.00

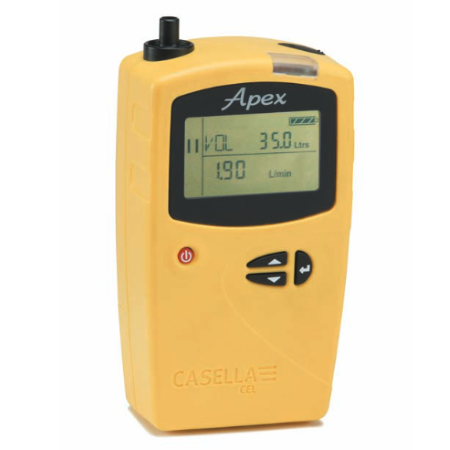

The Casella Apex Pro is a portable air sampling pump with a digital display. It is capable of datalogging information such as start and stop times, flow rate, average sample temperature, and total volume sampled. The flow rate can easily be adjusted and calibrated. The Casella Aprex Pro makes tedlar bag sampling simple with the 'bag' flow rate setting. This setting allows the pump to sense when the tedlar bag is full and automatically shut off. The Casella Apex Pro has programmable settings such as Time Weighted Averages (TWAs) and start & stop times. It is capable of flow rates as low as 5 mL/min to 5 L/min.

Flow Range
  • 0.8 to 5 L/min
  • 5 to 850 mL/min with low flow adaptor
Flow Control Accuracy ± 5% for selected flow, ± 3% for calibrated point
Flow Performance (Flow, max vacuum pressure)
  • 1.0 L/min @ 80 cm H2O
  • 2.0 L/min @ 80 cm H2O
  • 3.5 L/min @ 32cm H2O
  • 4.0 L/min @ 18 cm H2O
  • 5.0 L/min open flow
Battery Voltage and Capacity 4.8 V NIMH / 2.7 Ah
Inlet Pulsation Ratio <10% using Dewell Higgins Cyclone @ 2 litres/min approx. 7.5 cm H2O. Satisfies EN1232, NIOSH 0600
Displayed Values Real flow rate, volume sampled, elapsed sample time, temperature, operating mode, program details
Pump MTBF typically > 2500 hours
Operating Temperature 5°C to 45°C
Storage Temperature -10° to + 50°C
Charging Technique Drop-in Intelligent fast charger. dT/dt fast-charge termination with safety time out. Standby trickle charge mode keeps pump ready for use.
Typical Charge Time 3 hours for full charge
External PSU (for drop-in charger) Output 12 VDC, 0.8 A, Universal input voltage
Memory Protection Time with No Battery Approximately 20 minutes
Communications Infrared transducer (via RS232-infrared computer link)
Recorded Values Start & stop times, flow rate, average sample temperature, volume sampled and errors
Dimensions Approx. 136 x 78 x 46 mm
Weight with Battery Approx 460g
  • Apex Pro Air Sampling Pump
  • Charging Dock
  • Owners Manul
  • Carrying Case
