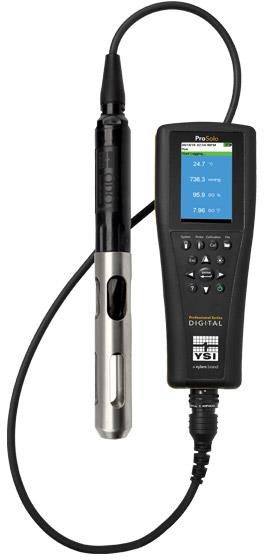

YSI ProSolo Optical Dissolved Oxygen Meter Rental
YSI ProSolo Optical Dissolved Oxygen Meter Rental
- Dissolved oxygen measurement 0 to 500% and 0 to 50 mg/L.
- Temperature measurement -5 to 70°C.
- Barometer with a range of 375 to 825 mmHg.
The YSI ProSolo ODO measures dissolved oxygen in water using luminescence technology. The optical DO sensor eliminates the need to stir samples, making it perfect for applications such as deep water profiling where stirring is difficult or undesirable. Unlike other DO measurement technologies, the optical sensor does not consume oxygen during its measurement process.
Probe Specifications | |
---|---|
Probe Size | 2.46 cm diameter, cable options for 1, 4, 10, 20, 30, 50, and 100 m lengths |
Dissolved Oxygen (Optical luminescence) Units: % saturation, % saturation local, mg/L, ppm | Range: 0 to 500%, 0 to 50 mg/L; Accuracy: 0 to 200%: ±1% of reading or 1% saturation, whichever is greater; 200 to 500%: ±8% of reading; 0 to 20 mg/L: ±0.1 mg/L or 1% of reading, whichever is greater; 20 to 50 mg/L: ±8% of reading; Resolution: 0.01 mg/L and 0.1%, or 0.1 mg/L and 1% (auto-adjusts based on range) |
Temperature (Thermistor) Units: °C, °F, K | Range: -5 to 70°C (temperature compensation range for DO mg/L measurement: -5 to 50°C ); Accuracy: ±0.2°C; Resolution: 0.1°C or 0.1°F (auto-adjusts based on range) |
Meter Specifications | |
---|---|
Dimensions | 8.3 cm width x 21.6 cm length x 5.6 cm depth; 567 g (with battery) |
Power | Rechargeable lithium-ion battery pack provides ~48 hours with the handheld only; Battery recharge time is ~ 9 hours with the AC power adapter; The instrument can also be powered via AC or external power through the USB port |
Operating Temperature | 0 to 50°C |
Storage Temperature | 0 to 45°C with battery installed; 0 to 60°C without battery installed |
Display | Color, LCD graphic display; 3.9 cm width x 6.5 cm height |
Memory | >100,000 data sets |
Barometer Units: mmHg, inHg, mbar, psi, kPa, atm | Range: 375 to 825 mmHg; Accuracy: ±1.5 mmHg from 0 to 50°C; Resolution: 0.1 mmHg |
Sites and Data ID | 100 user-defined sites and 100 user-defined data ID tags; Site pictures can be sent to the handheld via KorDSS Software |
Calibration Records | 400 detailed calibration records can be stored and are available to view, download, and print (printing only available via KorDSS Software) |
Languages | English, Spanish, German, French, Italian, Norwegian, Portuguese, Japanese, Chinese (Simplified & Traditional), Korean, Thai |
Certifications | CEC, CE; RoHS; IP-67; WEEE; FCC; UN Part III, Section 38.3, Test methods for lithium-ion batteries (Class 9) |
Warranty | 3 years on handheld |
- YSI ProSolo ODO Meter and Probe
- 98 ft. Cable
- Hard Case
- Probe Guard
- ProComm II Saddle and Cable
- Data Manager PC Software
- Field Calibration Record
- Spare Batteries
- Instruction Manual
File
YSI ProDIGITAL User Manual
(2.42 MB)
