TSI 9565-P Anemometer Manometer IAQ Meter Rental
TSI 9565-P Anemometer Manometer IAQ Meter Rental
- Includes 964 Thermo Anemometer Probe: air velocity (0 - 50 m/s), temperature (14 to 140°F), relative humidity (0 - 95%).
- Built-in Manometer: -15 to +15 in. H2O differential pressure.
- Datalog 26,500+ samples and 100 test IDs, user configurable intervals from 1 second to 1 hour.
- Includes TrakPro Data Analysis Software for data download, organization, reports and graphs.
- Powered by 4 AA batteries or AC adapter.

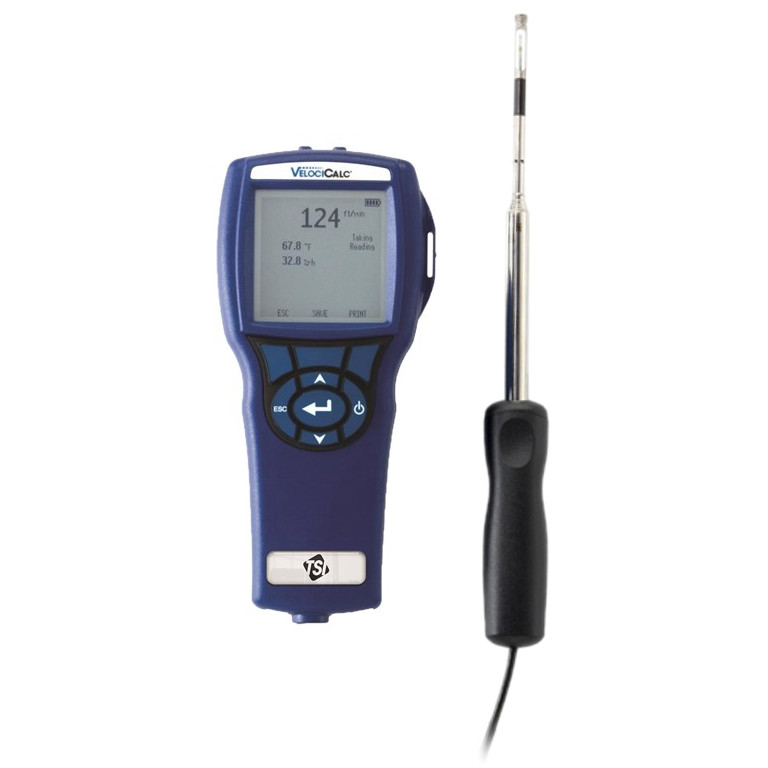

The TSI 9565-P Multi-Function Meter is a portable, hand held anemometer, manometer and IAQ meter. The rental meter comes equipped with the 964 Thermo Anemometer probe that measures air velocity, temperature, and relative humidity. The 9565-P meter has a built in manometer to measure differential pressure.
| Parameter | Range | Accuracy | Resolution |
|---|---|---|---|
| Air Velocity | 0 to 9,999 ft/min (0 to 50 m/s) | ±3% of reading or ±3 ft/min | 1 ft/min (0.01 m/s) |
| Temperature | 14 to 140°F (-10 to 60°C) | ±0.5°F (±0.3°C) | 0.1°F (0.1°C) |
| Relative Humidity | 0 to 95% RH | ±3% RH% | 0.1% RH |
| Differential Pressure | -15 to +15 in. H2O *Dont Exceed 190 in H20* | ±1% of reading ±0.005 in. H2O | 0.001 in. H2O (0.1 Pa, 0.01 mm Hg) |
- TSI 9565-P with 964 Thermo Anemometer Probe
- TrakPro Software
- Operators Manual
- Carrying Case
- USB Data Cable
- Factory Calibration Certificate
- AC Adapter
- Spare AA Batteries
File
TSI 9565 User Manual
(1.14 MB)
