Testo 875-2i Infrared Camera Rental

Testo

Testo 875-2i Infrared Camera Rental

SKU
TESTOINFRARED
  • Measurement ranges: -20 to 100°C and 350 to 550°C.
  • Built-in digital camera - records real images in parallel to each infrared image.
  • High quality 32° × 23° lens.
  • Rechargeable Li-ion battery provides approx 4 hours of use.
Daily Weekly Monthly
$125.00 $375.00 $1,125.00

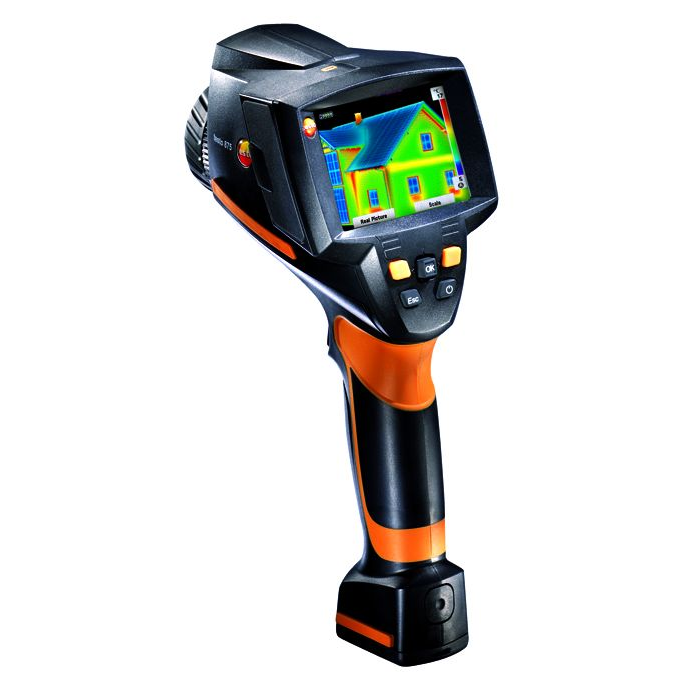

The Testo 875-2i is a robust thermal imager with an integrated digital camera. The testo 875-2i allows you to view the thermal and regular image simultaneously! Typical applications include but are not limited to building inspection, energy evaluation of buildings, preventative maintenance, and production monitoring.  The Testo 875-2i has a high-quality wide-angle lens 32° x 23, detector 160 x 120, manual focus, 2 GB SD card for approx. 1000 images, minimum focus distance 10 cm, integrated digital camera, exchangeable lens, and displays surface moisture distribution.

Infrared Image Output
Field of vision/min. focusing dinstance
  • Standard lens: 32° x 23°/0.1 m (0.33 ft)
  • Telephoto lens: 9° x 7°/0.5 m (1.64 ft)
Thermal sensitivity (NETD) < 110 mK at 30 °C (86 °F)
Geometric resolution
  • Standard lens: 3.3 mrad
  • Telephoto lens: 1 mrad
Refresh rate 9 Hz
Focus Manual
Detector type FPA 160 x 120 pixels, a.Si
Spectral range 8 - 14 μm
Visiual Image output
Field of vision/min. focusing distance 33° x 25°/0.4 m (1.31 ft)
Image size 640 x 480 pixels
Refresh rate 8 to 15 Hz
Image Presentation
Image display 3.5" LCD with 320 x 240 pixels
Display options Infrared image / real image / infrared and real image
Video output USB 2.0
Video stream 9 Hz
Colour palettes 4 options
Measuring
Temperature Range (can be changed) -20 to 100 °C / 0 to 280 °C (-4 to 212 °F / 32 to 536 °F)
Accuracy ±2 °C (±3.6 °F) or ±2 % of reading (whichever is the greater)
Reproducibility ±1 °C (±1.8 °F) or ±1 % (whichever is the greater)
Measuring point minimum diameter
  • Standard lens: 10 mm at 1 m
  • Telephoto lens: 3 mm at 1 m
On-time (time to image) 30 s
Measuring functions
  • Standard measurement (1-point), Cold-/ Hotspot
  • Display of the surface moisture distribution via manual entry of the dewpoint
Compensation for reflected temperature manual
Setting Emissivity 0.01 - 1.00
Image Storage
File format .bmt (export options - .bmp, .jpg, .csv
Removable memory SD card
Memory capacity Scope of delivery: 2 GB (approx. 1000 images)
Lens
Standard Lens 32° x 23°
Telephoto lens (testo 875-2 optional) 9° x 7°
Aperture 1.0
Power Supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time approx. 4 h at 20 - 30 °C (68 - 86 °F)
Charging option In instrument/in charging station (optional)
Mains operation Yes, with mains unit 0554 8808
Mains unit output voltage 5 V / 4 A
Ambient Conditions
Operating Temperature -15 - 40 °C (5 - 113 °F)
Storage Temperature -30 - 60 °C (-22 - 140 °F)
Air humidity 20 - 80 %RH, not condensing
Enclosure rating of the housing IP54 (Interface terminals closed, battery connected, lens mounted)
Physical Features
Weight 900 g (including battery)
Dimensions 152 x 108 x 262 mm (5.98 x 4.17 x 10.31")
Tripod Mounting Yes, with adapter (included in delivery)
Housing ABS
Protection Class IP 54
Vibration max. 2 G
PC Software
System Requirements Operating system Windows XP Service Pack 2, Windows Vista or higher USB 2.0 interface
Standards, Tests, Warranty
EU Directive 2004/108/EC
Vibration IEC 60068-2-6
Warranty 2 years, warranty conditions: see testo website
  • Testo 875-2i Infrared Camera
  • SD Card
  • Tripod Adapter
  • Li-ion Rechargeable Battery
  • Battery Charger
  • IRSoft Software
  • USB Cable
  • Carrying Case
