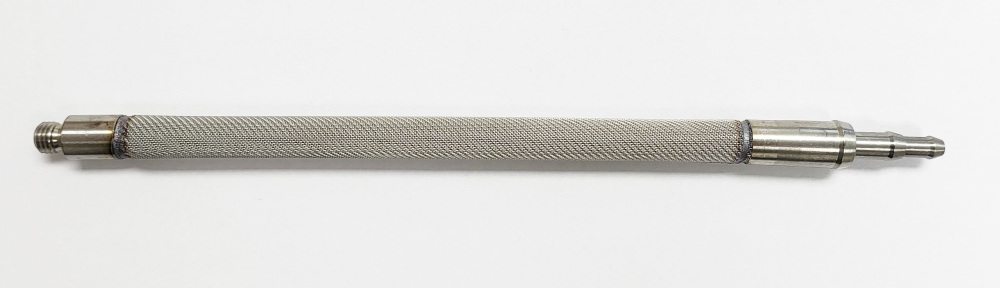

Stainless Steel SGV 6 IN. Screened Implant with Stepped Fitting
Stainless Steel SGV 6 IN. Screened Implant with Stepped Fitting
- Double woven stainless steel wire screen.
- Universal barb fits 0.25" to 0.500" OD tubing.
- Allows for Anchor point or open-hole placement.
| Material | 316 Stainless Steel |
|---|---|
| Filtration Rate | 150 Microns |
| Max OD | 7/16" |
| Connection | Barb for 1/4" OD - 1/2" OD Tubing |
| Anchor Mount | 5/16-24 LHT |
| Max Temp | 400°F |
