Solar Light PMA2100 NIST-Traceable Radiometer Rental
Solar Light PMA2100 NIST-Traceable Radiometer Rental
- UV-A + UV-B measurement (0 - 200 mW/cm2; 200 - 400 nm)
- UV-C measurement (0 - 2000 µW/cm2; 254 nm, 10 nm bandwidth)
- NIST Traceable Calibration Certificate
- Data logging capability
- Up to 40 hour battery life

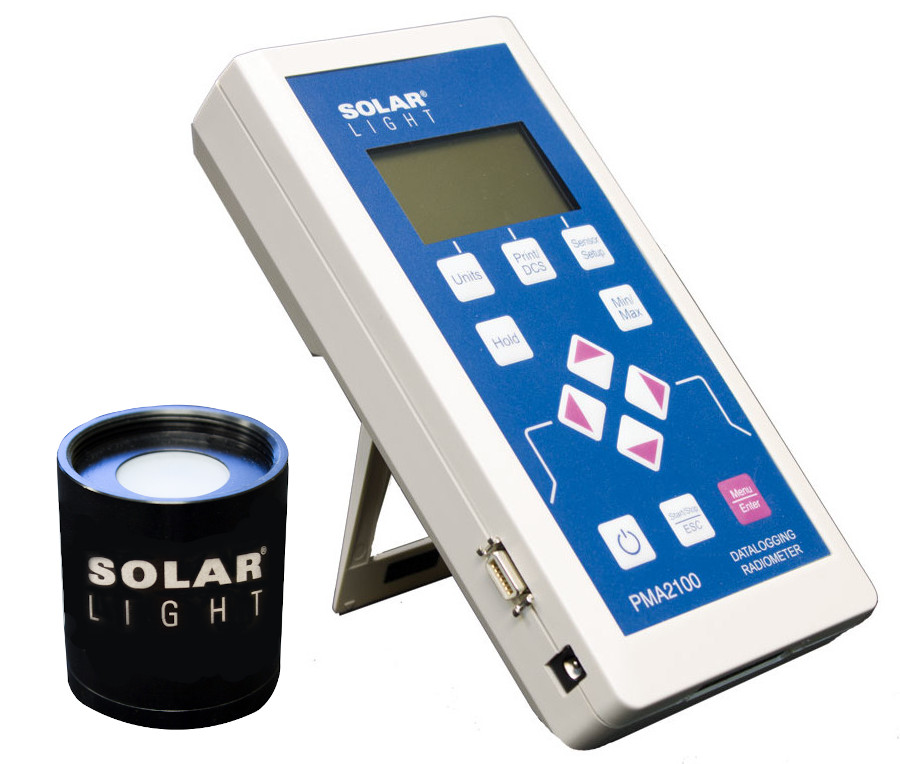

Solar Light’s Model PMA2100 Dual-Input Data Logging Radiometer is a research grade instrument that can be used with over 85 different PMA-Series Digital Sensors. It functions as a light meter, photometer, and UV meter measuring UVA, UVB, UVC, Visible, and IR light. These intelligent meters use advanced sensor detection and data processing, allowing the user to add new sensors quickly and easily to measure different kinds of light without having to use a different meter. They feature graphic display, data logging, complex processing algorithms, selectable units of measure, averaging, tracking minima and maxima, dose integration and programmable alarm thresholds – all in a portable, light weight device.
| Range | 2,000 [μW/cm2 ] or 20,000 [mW/m2 ] |
|---|---|
| Resolution | 0.01 [μW/cm2 ] or 0.1 [mW/m2 ] |
| Spectral Response | 249 - 259 nm, see Figure 1 of sensor datasheet |
| Operating Environment | 32 to 120°F (0 to +50°C) |
| Range | 200 [mW/cm2 ] or 2,000 [W/m2 ] |
|---|---|
| Resolution | 0.001 [mW/cm2 ] or 0.01 [W/m2 |
| Spectral Response | 280-400nm, see Figure 1 of sensor datasheet |
| Operating Environment | 32 to 120°F (0 to +50°C) |
| Power Source | 4 x AA NiCd or Alkaline Batteries, 9-12V AC or DC Charger |
|---|---|
| Battery Life | Up to 40 hours between charges |
| Detector Inputs | 2 Sockets with up to 2 analog signals each |
| Size W x D x H | 4” x 1.75” x 7.5” (10 x 4.3 x 19.2 cm) |
| LCD Size | 2.25” x 1.25” (5.7 x 3 cm) |
| Weight | 18 oz. (510 grams) |
