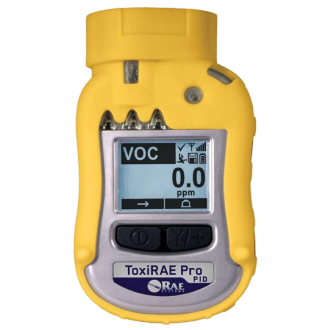

RAE Systems ToxiRAE Pro PID Portable VOC Monitor

RAE Systems

RAE Systems ToxiRAE Pro PID Portable VOC Monitor

MODEL# PGM-1800

  • Measures Volatile Organic Compounds (VOCs)
  • Industrial Hygiene Model: 0.1 to 2,000 ppm; 0.1 ppm resolution; datalogging
  • Safety Model: 1 to 1,000 ppm; 1 ppm resolution; No datalogging
  • Wireless or non-wireless versions available

Protect workers from the threat of volatile organic compounds (VOCs) in the workplace and observe conditions remotely from a central command station with this compact, wireless monitor. The ToxiRAE Pro PID’s next-generation sensor can detect over 300 VOCs and uses a built-in on-board library of 190 correction factors to automatically read gases in equivalent units. Reliable, rugged, and intrinsically safe, the ToxiRAE Pro PID can be easily attached to workers’ uniforms, and also provides a man-down alarm. It all adds up to better visibility and faster incident response in a variety of conditions.

Size 118 mm x 60 mm x 30 mm (4.6" x 2.4" x 1.2")
Weight 8.29 oz. (235 g.)
Sensors Photoionization sensor with 10.6 eV (standard) or 9.8 eV (optional) lamp. Response time (T90) < 15 sec. (Isobutene). Field-replaceable sensor. Easy access to lamp for cleaning
Battery Rechargeable Li-ion battery
Display Rechargeable Li-ion battery
- Operating time: > 12 hours (normal operation, non-wireless)
- Recharge time: < 4 hours through charging cradle
Display Readout - Real-time reading of VOC concentrations in parts per million or mg/m3; battery status; data logging on/off; wireless on/off and reception quality
- STEL, TWA, and peak values
Keypads 2 buttons for operation and programming
Sampling Internal Fan
Calibration Automatic with AutoRAE 2 Test and Calibration System or manual
Alarm Modes
  • Wireless remote alarm notification, audible (95dB @ 30cm), vibration, visible alarm (flashing bright red LEDs), and on-screen indication of alarm conditions
  • Additional diagnostic alarm and display message for low battery
Datalogging
  • Continuous datalogging with a three-month capacity (at one-minute intervals)
  • User-configurable datalogging interval (from 1 to 3600 seconds)
Communication and Data Download
  • Data Download and instrument set-up on PC via charging and PC comm. cradle
  • Data download via AutoRAE2 Automated Test and Calibration Station
  • Wireless data and status transmission via built-in RF modem (optional)
Wireless Network ProRAE Guardian Real-Time Wireless Safety System or Closed-Loop Network with the EchoView Host
Wireless Frequency ISM license-free bands
Wireless Range (Typical) ToxiRAE Pro PID to Mesh Router, EchoView Host, or Mesh Reader ~ 330 feet (100 meters)
ToxiRAE Pro PID to RAELink3 Mesh or RAELink3 Z1 Mesh modems ~ 33 feet (10 meters)
Operating Temperature -4° to 131°F (-20° to 55°C)
Humidity 0% to 95% relative humidity (non-condensing)
Hazardous Area Approval
  • US and Canada: Class I, Division I, Groups A, B, C and D. T-code T4 Class I, Zone 0 A/Exia IIC T4
  • Europe: ATEX CE, Ex II 1g, Ex ia IIC Ga T4
  • China: Ex ia llC T4
CE Compliance EMC directive: 2004/108/EC. R&TTE directive: 1999/5/EC. ATEX directive: 94/9/EC
Warranty - Two years on non-consumable components
- One year on sensor, fan, battery, and other consumable parts
