RAE Systems ppbRAE 3000 PID Rental

RAE Systems

RAE Systems ppbRAE 3000 PID Rental

SKU
PPBRAE3K
  • Measures total volatile organic compounds (VOCs) in parts per billion (1 ppb to 10,000 ppm).
  • Humidity compensation with integral humidity and temperature sensors.
  • 260,000-point datalogging storage capacity
  • Correction factors for more than 200 compounds.
  • Built-in sample pump 450-550 cc/min, draws 100 feet (30m) horizontally or vertically.
Daily Weekly Monthly
$120.00 $375.00 $1,115.00

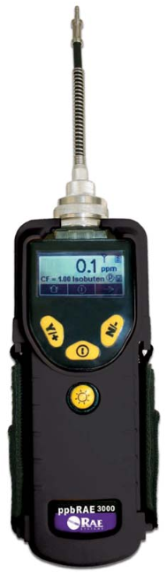

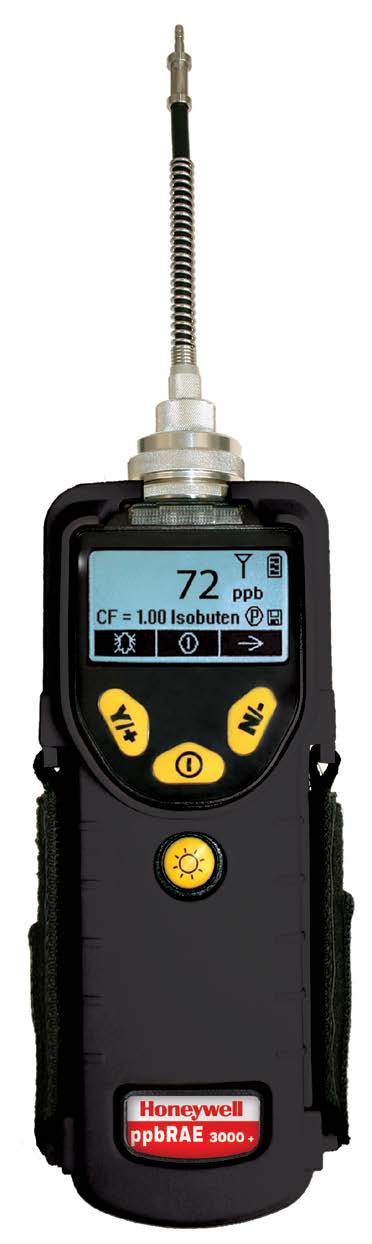

The RAE Systems ppbRAE 3000 photoionization detector (PID) is a hand held volatile organic compound (VOC) detector that measures VOC levels as low as 1 ppb and up to 10,000 ppm. The monitor can log up to 6 months of data at one-minute intervals. The ppbRAE 3000 has a built-in humidity and temperature sensor to compensate for humidity levels, improving the accuracy of readings. The instrument comes pre-calibrated to 10 ppm isobutylene by our environmental specialists, and includes a calibration record.

Range Resolution Response Time T90
0-9999 ppb 1 ppb < 3 s
10-99 ppm 0.01 ppm < 3 s
100-999.9 ppm 0.1 ppm < 3 s
1000-9999 ppm 1 ppm < 3 s
Size 10" L x 3.0" W x 2.5" H (25.5 cm x 7.6 cm x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 10.6 eV or optional 9.8 eV or 11.7 eV lamps
Battery
  • Rechargeable, external field-replaceable Lithium-Ion battery pack
  • Alkaline battery adapter
Operating Hours 16 hours of operation (12 hours with alkaline battery)
Display 4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
Keypads 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout VOCs as ppm by volume, High values, STEL and TWA, Battery and shutdown voltage, Date, time, temperature
Alarms 95dB at 12" (30 cm) buzzer and flashing red LED to indicate exceeded preset limits:
  • High: 3 beeps and flashes per second
  • Low: 2 beeps and flashes per second
  • STEL and TWA: 1 beep and flash per second
  • Alarms latching with manual override or automatic reset
  • Additional diagnostic alarm and display message for low battery and pump stall
EM/RFI Highly resistant to EMI/RFI. Compliant with EMC directive (2004/108/EC); R & TTE directive (1999/5/EC)
IP Rating IP67 unit off and without flexible probe, IP65 unit running
Data Logging Standard 6 months at one-minute intervals
Calibration Two-point or three-point calibration for zero and span. Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump Internal, integrated flow rate at 500 cc/mn, Sample from 100' (30m) horizontally and vertically
Low Flow Alarm Auto shut-off pump at low flow condition
Communications Download data and upload instrument set-up from PC through charging cradle or optional Bluetooth™. Wireless data transmission through built-in RF modem.
Frequency 902 to 928 MHz (license-free), 2.400 to 2.4835 GHz (license-free), 433 MHz, 869 MHz
RF Range Up to 500' (152m; 900 MHz, 433 Mhz, 869 Mhz), extendable with RAELink3 Repeater to 2 miles (3.2km)
Hazardous Area Approval
  • US and Canada: Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
  • Europe: ATEX II 2G EEx ia IIC T4
Temperature -4 to 122 °F (-20 to 50 °C)
Humidity 0% to 95% relative humidity (non-condensing)
Attachment Durable black rubber boot
  • ppbRAE 3000 PID
  • USB Data Cable
  • Instruction Manual
  • Hard Case
  • Charcoal Zero Adapter
  • Battery Charger with Cradle
  • Calibration Record
  • ProRAE Studio Software
  • Spare Filter
