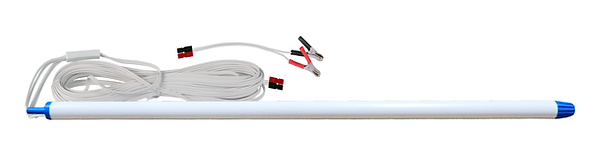

Proactive Storm-50 12 Volt Plastic Groundwater Pump
- Fits in a 1" ID Well.
- Capable of pumping up to 50 feet from ground level.
- 12 volt battery powered, hook straight to a car battery.
- Low flow sampling controller available for flow adjustment (optional).
- Can operate under harsh conditions and higher turbidity.
| Max Liquid Flow | 0.75 GPM |
| Max Depth | 50 ft |
First 12 Volt Submersible Centrifugal Pump to fit into a 1" ID Well
The Engineered Plastic 12 volt submersible centrifugal Storm® 50 pump is capable of pumping up to 50 feet from ground level (DTW)* by simply connecting the Storm® 50 to a 12 volt deep cycle battery. Its reliable design is perfect for continuous sampling and purging of groundwater wells and Low Flow Sampling (Fractional Flow®).
The 12 Volt Storm® 50 is ideal for low flow sampling (Fractional Flow®) in conjunction with Proactive Environmental Products Low Flow Sampling Controller. Low flow sample all the way down to 40 mLs per minute. To achieve even a lower flow ..... simply add the Low Flow Sampling Control Valve in conjunction with the Low Flow Sampling controller to achieve flow rates of 10 mLs per minute or less!
| Pumping Depth | GPM |
|---|---|
| 3 | 0.75 |
| 10 | 0.62 |
| 20 | 0.56 |
| 25 | 0.50 |
| 30 | 0.50 |
| 40 | 0.43 |
| 50 | 0.37 |
| 55 | 0.31 |
| Power Consumption | 60 Watts (MAX) |
| Volt Recommendation | 12-15 (DC) At Source |
| Maximum Amp Output | 4 Amps |
| Measurements | Length 24" / Diameter 0.9" |
| Required Tubing | 3/8" ID or 1/2" ID Low Density Polyethylene Tubing |
| Supplied With | 60 Feet of Heavy Duty 12 Gauge Wire, Quick Disconnect Plug & Battery Clamps |
| Required Tubing | 1/4" x 3/8" ID Tubing |
| Pump Construction | ABS / PVC |
| Impeller Construction | Poly Acetal (POM) |
| Wire Construction | PVC |
| Seal Construction | Nitrile |
