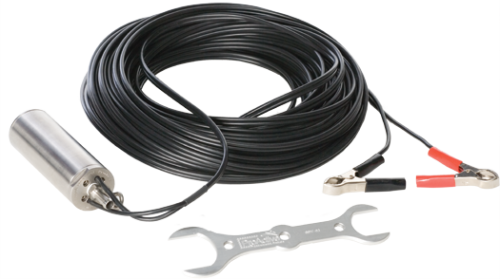

Proactive Mini-Monsoon XL 80 Stainless Steel Groundwater Pump
Proactive Mini-Monsoon XL 80 Stainless Steel Groundwater Pump
- Capable of pumping up to 80 feet from ground level (minimum depth 40 ft).
- Stainless Steel construction, field replaceable motor modules.
- 12 volt battery powered, hook straight to a car battery.
- Can operate under harsh conditions and higher turbidity.
Max Liquid Flow | 1 GPM |
Max Depth | 80 ft |
The Mini-Monsoon XL® 80 pump is capable of pumping up to 80 feet from ground level by simply connecting it to a 12 volt battery. Its reliable design is suitable for continuous purging of groundwater wells. Proactive's Remediation Pumps are patented for their unique design (#7584785). For the harsh environments!
Note: This pump must be used at a minimum depth of 40 feet or deeper.
Pumping Depth | GPM |
---|---|
10 | DONT USE |
20 | DONT USE |
30 | DONT USE |
40 | 2.0 |
50 | 1.75 |
60 | 1.4 |
70 | 1.25 |
80 | 1.0 |
Power Consumption | 285 Watts (MAX) |
Volt Recommendation | 12-15 At Source |
Maximum Amp Output | 19 Amps |
Measurements | Length 7.5" / Diameter 1.82" |
Controller | NONE |
Required Tubing | 3/8" ID Low Density Polyethylene Tubing |
Supplied With | 90 Feet of Heavy Duty 10 Gauge Wire with Alligator Clamps |
