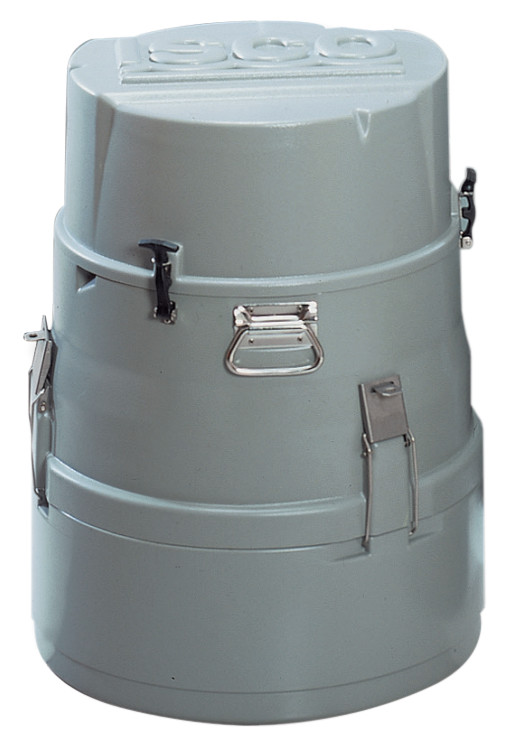

ISCO 3700 Sequential / Composite Sampler Rental
ISCO 3700 Sequential / Composite Sampler Rental
- Exclusive LD90 Liquid Presence Detector and pump revolution counting system ensure accurate, repeatable sample volumes.
- Basic and extended programming modes for uniform and non-uniform time intervals, stormwater runoff sampling, multiple bottle compositing, split sampling .
- Thick, foamed-in-place insulation and twin-wall design provide maximum performance in sample preservation.
- 3700 Controller is housed in a NEMA 4X and 6 (IP67) environmentally sealed enclosure.
Accessories
The exclusive LD90 gives you automatic compensation for changes in head height, plus automatic suction line rinsing to prevent cross contamination. The non-contacting liquid sensor is not affected by conductivity, viscosity, temperature, or liquid composition. There are no internal tubing connections, so cleaning and tubing replacement are fast and easy. The 3700 pump outperforms most competing samplers and maintains the EPA-recommended 2 ft/second line velocity at head heights up to 16 feet, with 1/4-inch suction line.
Size (Diam x Ht): | 19 x 25 inches (50.5 x 64 cm) |
---|---|
Weight: | Dry, less battery - 37 lbs (16.8 kg) |
Material: | ABS Plastic |
Power required: | 12 VDC |
Pump | |
---|---|
Intake purge: | Adjustable air purge before and after each sample. |
Tubing life indicator: | Provides a warning to change pump tubing. |
Pump tubing life: | Recommended 500,000 pump counts |
Intake suction tubing: | Vinyl or Teflon®; 3/8 inch (1 cm) or 1/4 inch (0.6cm) ID; 3 to 99 feet (1 to 30 m) Length |
Maximum lift: | 26 ft. (7.9 m) |
Repeatability: | ±10 ml typical |
Typical line velocity @ Head height: | 2.5 ft./s @ 3 ft; 2.5 ft./s @ 10 ft; 1.9 ft./s @ 15 ft. (0.76 m/s @ 0.9 m; 0.76 m/s @ 3.1 m; 0.58 m/s @ 4.6 m) |
Liquid presence detector: | Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights. |
Controller | |
---|---|
Weight: | 11 lbs (5 kg) |
Size (HxWxD): | 10 x 12.5 x 10 inches (25 x 32 x 25 cm) |
Operational temperature: | 32° to 120°F (0° to 49°C) |
Enclosure rating: | NEMA 4X, 6 IP67 |
Program memory: | Non-volatile ROM |
Flow meter signal input: | 5 to 15 volt DC pulse or 25 millisecond isolated contact closure. |
Interface port: | 8 pin connector; data output at 2400 baud in ASCII. RS-232 format with handshake. |
Clock accuracy: | 1 minute per month, typical, for real time clock |
Software | |
---|---|
Sample frequency: | 1 minute to 99 hours 59 minutes, in 1 minute increments. Non-uniform times in minutes or clock times 1 to 9,999 flow pulses |
Sample pacing: | Uniform time, non-uniform time, flow, flow paced/time switched, STORM (time and flow paced sampling during sample collection.) Flow pacing is controlled by external flow pulses. |
Multiplexing: | Samples per bottle (1 to 50 with 1000 ml bottles; 1 to 17 with 350 ml bottles), bottles per sample (1 to 24), multiple bottle compositing. |
Sample volumes: | Programmable from 10 to 9,990 ml in 1 ml increments |
Sample retries: | If no sample is detected, up to 3 attempts; user selectable |
Rinse cycles: | Automatic rinsing of suction line up to 3 rinses for each sample collection |
Program storage: | 3 sampling programs |
Programming modes: | Basic, extended and STORM |
Sampling stop/resume: | Up to 24 real time/date sample stop/resume commands. |
Controller diagnostics: | Tests for RAM, ROM, pump display, and distributor |
Items Included:
- ISCO 3700 Sequential / Composite Sampler
- AC Power Pack
- 4 ft Silicone Pump Head Tubig
- (2.5 or 4 Gallon) Polyethylene Bottle
Available On Request:
- 12V Rechargeable Power Pack
