Heron SM.Oil Oil/Water Interface Meter

Heron

Heron SM.Oil Oil/Water Interface Meter

  • Measures product layer as thin as 1 mm (1/200')
  • Certified intrinsically safe to CSA and ANSI / UL Standards
  • Fully pressure/depth rated, 19 mm (0.74") field replaceable probe.
  • Available in 20m or 60' length.
  • High tensile steel, jacketed with Kynar, high break strength, long lasting tape.

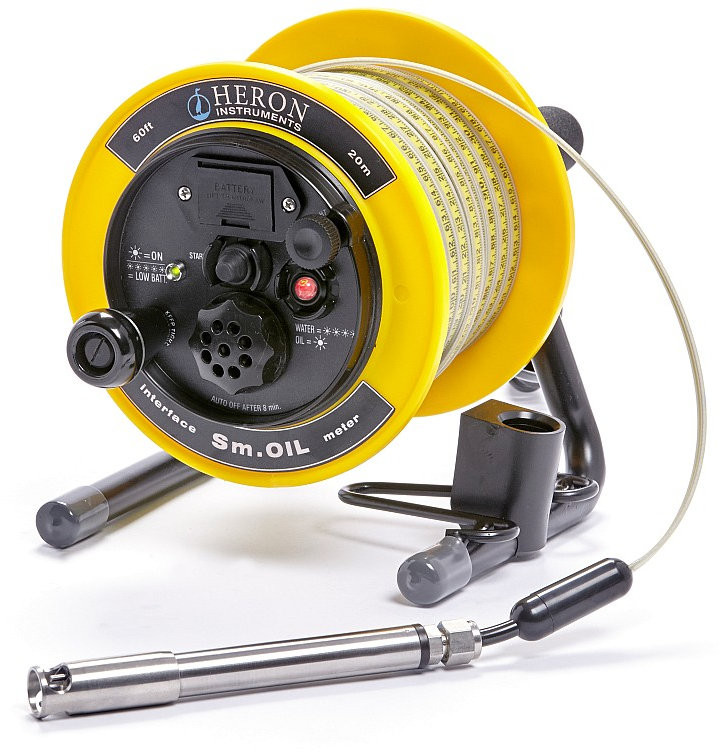

The Sm.OIL oil/water interface meter has the same functionality of our H.OIL oil/water interface meter. This compact unit only comes in one tape length (20m or 60’) on a small hand held frame designed for easy portability. The premium padded carry case comes included to protect your precision instrument from the elements.

The Sm.OIL is used to measure the interface level between two liquids in the same tank, vessel, well or aquifer. The dissimilar density of two liquids means the lower density, non-conductive product (LNAPL) will float on top of the higher density, conductive liquid (water). Denser products will tend to sink (DNAPL), creating a layer under the water.

The hydrocarbon resistant Kynar jacketed, high tensile steel core tape is able to withstand hydrocarbons, solvents and other harsh contaminants. The CSA intrinsically safe certificationmakes the Sm.OIL ideal for use in hazardous environments by Oil & Gas, Chemical and Petrochemical Industries.

  • Certified – Intrinsically safe to CSA and ANSI/UL standards, class 9098-1 or 9098-81 (USA) for hazardous locations and Class I groups A,B,C and D
  • Detects LNAPL and DNAPL
  • Ability to measure product layer as thin as 1mm (1/200ft)
  • Grounding Lead
  • Electronic Module (IP65) – Automatic shut off after 10 minutes, removable for easy cleaning and servicing. Circuits and components are potted to protect from moisture and dust intrusion
  • Probe (IP68) – fully pressure/depth rated*, 19mm (0.74”) field replaceable
  • Steel Tape – high tensile steel, jacketed with Kynar, high break strength, stretch resistant and lifelong legibility – markings in metric (mm) or engineering scale (1/100’)
  • Steel Tape Certified/Compliant to – ASME B89.1.7-2009 & MIL-STD-45662A Certified, FED GGG-T-106F & EEC Class II Compliant

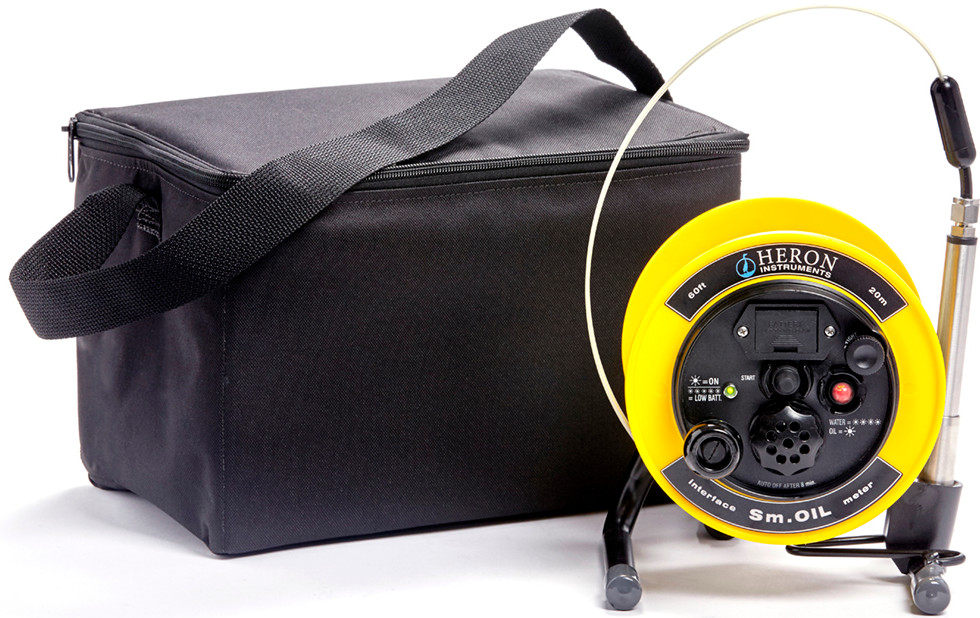

  • Padded Carry Case – to protect your precision oil water interface meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deployment
  • Handle – soft comfort foam grip
  • Winding Handle – custom made for easy rewinding with gloved hands

*Temporarily Submersible

Reel Assembly Small
Height 19.5 cm (7.7")
Depth 30.5 cm (12")
Width 18.75 cm (7.4")
Weight (Reel Assembly Only) 1.32 kg (2.9 lbs)
Plate Size 15.25 cm (6")
Plate Material Nylon
Brake Twist Lock
Hanger Included on frame leg
Tape Guide None
Test Points Separate
Tape Lengths
  • 20 m, 60 ft
Tape
Tape High Tensile Steel
Jacketing Kynar
Conductors 7 strand (4 S/S & 3 copper)
Markings Metric or Engineering Scale - Under Jacketing
Width 0.952 cm (3/8")
Dog Bone Profile Yes
Break Strength 127 kg (280 lbs)
Probe
Weight 126 g (0.278 lb)
Length 200 mm (7.9")
Diameter 19 mm (0.74")
Removable Yes
Depth Rating IP68
Break Strain 68 kg (150 lbs)
Wetted Material S/S, Viton, Nylon, ABS & Grilamid
Electronic Panel
Operating Mode Static & Product Interface
Power Source 9 Volt alkaline
Detects LNAPL & DNAPL
Audio / Visual Indication Ultra bright LED & 80 dBi buzzer
Rating IP65
Removable Yes
Maximum Temperature 80°C
