Heron H.Oil Oil/Water Interface Meter

Heron

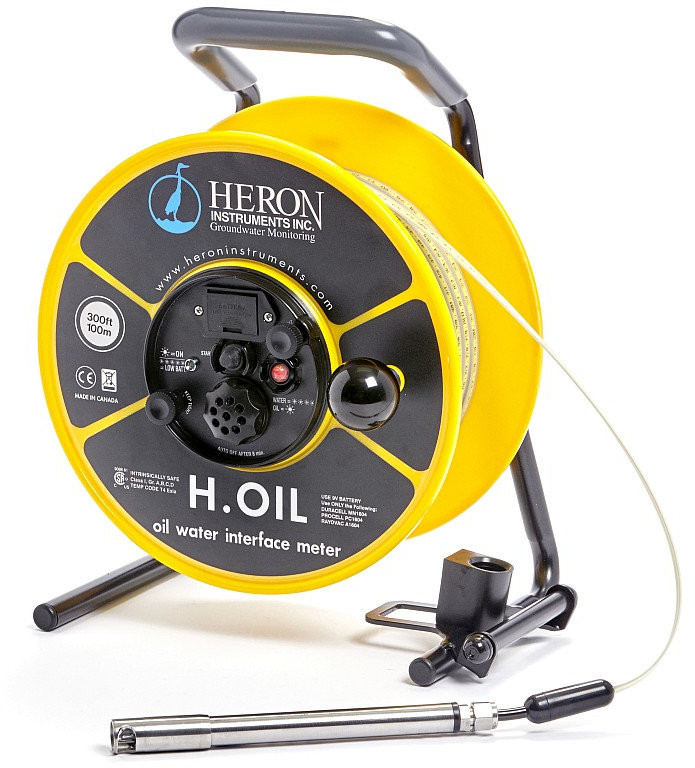

Heron H.Oil Oil/Water Interface Meter

  • Measures product layer as thin as 1 mm (1/200')
  • Certified intrinsically safe to CSA and ANSI / UL Standards
  • Fully pressure/depth rated, 19 mm (0.74") field replaceable probe.
  • Available in 15m - 150m or 50ft - 500ft lengths.
  • High tensile steel, jacketed with Kynar, high break strength, long lasting tape.

The H.OIL oil, water interface meter is used to measure the interface level between two liquids in the same tank, vessel, well or aquifer. The dissimilar density of two liquids means the lower density, non-conductive product (LNAPL) will float on top of the higher density, conductive liquid (water). Denser products will tend to sink (DNAPL), creating a layer under the water. The premium padded carry case comes included to protect your precision instrument from the elements.

The hydrocarbon resistant Kynar jacketed, high tensile steel core tape is able to withstand hydrocarbons, solvents and other harsh contaminants. The CSA intrinsically safe certificationmakes the H.OIL ideal for use in hazardous environments by Oil & Gas, Chemical and Petrochemical Industries.

  • Certified – Intrinsically safe to CSA and ANSI/UL standards, class 9098-1 or 9098-81 (USA) for hazardous locations and Class I groups A,B,C and D
  • Detects LNAPL and DNAPL
  • Ability to measure product layer as thin as 1mm (1/200ft)
  • Grounding Lead
  • Electronic Module (IP65) – Automatic shut off after 10 minutes, removable for easy cleaning and servicing. Circuits and components are potted to protect from moisture and dust intrusion
  • Probe (IP68) – fully pressure/depth rated*, 19mm (0.74”) field replaceable
  • Steel Tape – high tensile steel, jacketed with Kynar, high break strength, stretch resistant and lifelong legibility – markings in metric (mm) or engineering scale (1/100’)
  • Steel Tape Certified/Compliant to – ASME B89.1.7-2009 & MIL-STD-45662A Certified, FED GGG-T-106F & EEC Class II Compliant

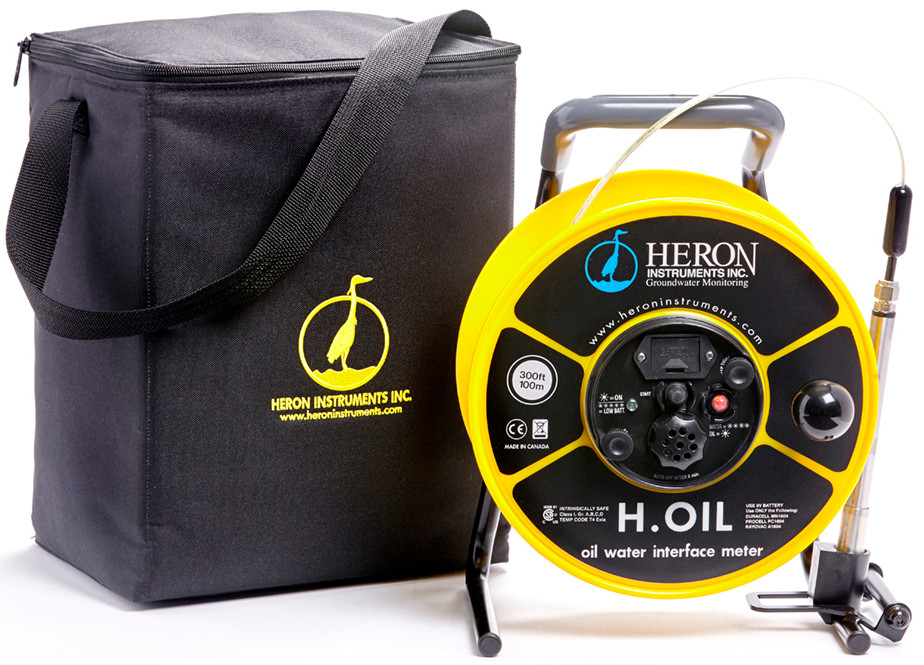

  • Padded Carry Case – to protect your precision oil water interface meter from the elements
  • Hanger – built in, to support the meter at the well head, allows for hands free deployment
  • Tape Guide - built in, to protect the tape from sharp edges on the well casing
  • Vinyl Holding Grip – molded to the frame, ergonomic easy grip
  • Winding Handle – custom made for easy rewinding with gloved hands

*Temporarily Submersible

Reel Assembly Standard
Height 36 cm (14.2")
Depth 21 cm (8.3")
Width 29 cm (11.4")
Weight (Reel Assembly Only) 2.30 kg (5.1 lbs)
Plate Size 26.67 cm (10.5")
Plate Material Nylon
Brake Ergonomic Dial
Hanger Included on frame leg
Tape Guide Included on frame leg
Test Points On back of frame
Tape Lengths
  • 15 m, 50 ft
  • 30 m, 100 ft
  • 60 m, 200 ft
  • 100 m, 300 ft
  • 150 m, 500 ft
Tape
Tape High Tensile Steel
Jacketing Kynar
Conductors 7 strand (4 S/S & 3 copper)
Markings Metric or Engineering Scale - Under Jacketing
Width 0.952 cm (3/8")
Dog Bone Profile Yes
Break Strength 127 kg (280 lbs)
Probe
Weight 126 g (0.28 lb)
Length 200 mm (7.9")
Diameter 19 mm (0.74")
Removable Yes
Depth Rating IP68
Break Strain 68 kg (150 lbs)
Wetted Material S/S, Viton, Nylon, ABS & Grilamid
Electronic Panel
Operating Mode Static & Product Interface
Power Source 9 Volt alkaline
Detects LNAPL & DNAPL
Audio / Visual Indication Ultra bright LED & 80 dBi buzzer
Rating IP65
Removable Yes
Maximum Temperature 80°C
