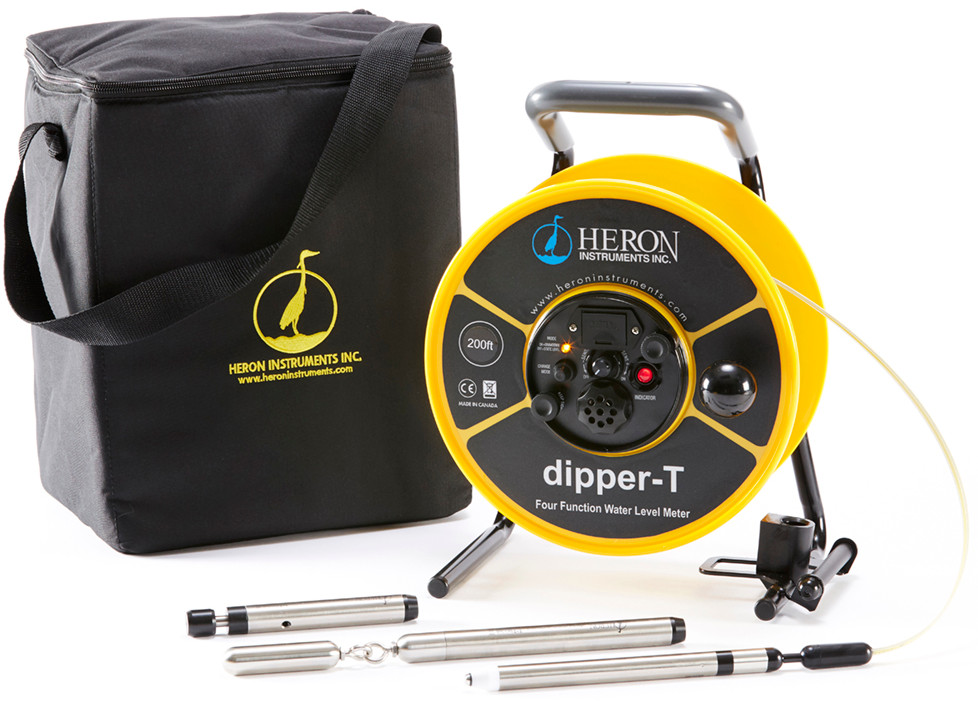

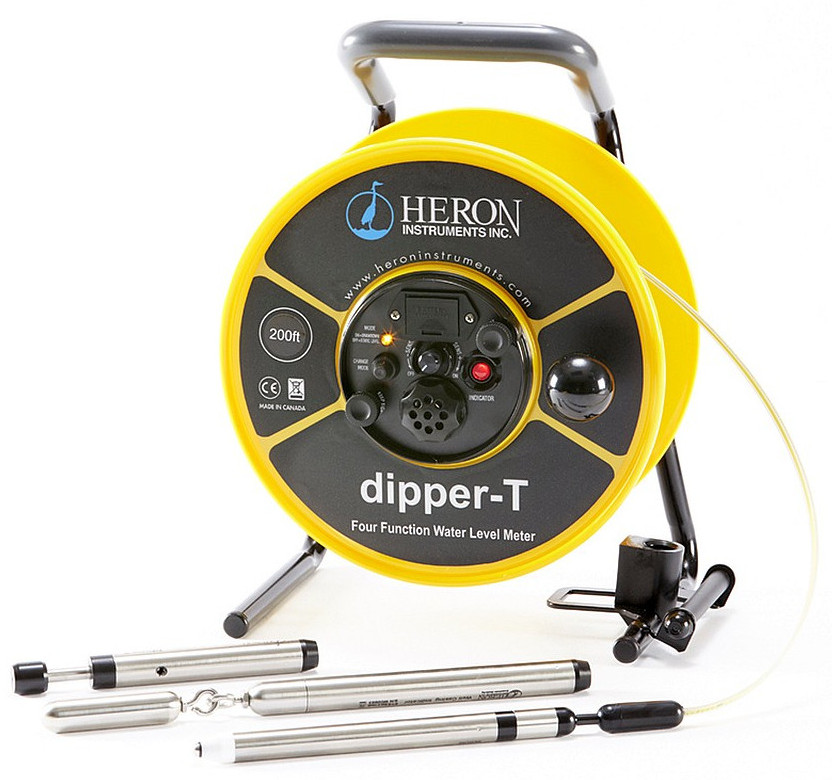

Heron Dipper-T Four Function Water Level Meter
Heron Dipper-T Four Function Water Level Meter

Heron Dipper-T Four Function Water Level Meter

  • Available in 50 - 1000 feet or 15 - 300 meter lengths.
  • High tensile steel tape, jacketed with polyethylene, high break strength, stretch resistant.
  • Static and DrawDown operating modes.
  • Well Casing and Well Depth modes (requires purchase of probe accessories).
  • Field replaceable, fully pressure/depth rated probes.

The Heron dipper-T is renowned for its premium, polyethylene coated yellow steel tape accuracy in measuring depth to water. Available in your choice of either metric or engineering scale.

The dipper-T water level meter can be conveniently converted to a multi-functional instrument, not only able to measure static and fallinghead levels, but also to determine the length of casing and well depth. The water level sensing probe can be easily removed at the link connection and substituted with either the Well Casing Indicator Probe or Well Depth Indicator Probe. The FOUR FUNCTION capability of the dipper-Twater level meter makes this unit an asset to groundwater professionals and rural property owners during the construction of new wells, maintaining wells or decommissioning abandoned wells.

Static mode is used for measuring the depth of water in wells, boreholes and standpipes. DrawDown mode is used for measuring falling water levels during purging, well development and for low flow sampling.

The Well Casing Indicator Probe is used to measure the depth of metal casing in wells and boreholes from two inches in diameter and upward. The Well Casing Indicator Probe works using magnetism. While the probe sits within the magnetic field of the steel casing, an auditory and visual signal is active. When the probe leaves the magnetic field the signal stops. Note the condition of the well for accurate readings.

The Well Depth Indicator Probe (or bottom detector) is used to measure the full depth in wells and boreholes. The Well Depth Indicator Probe uses a pressure sensitive plunger to measure the distance to the bottom of the well. When the Well Depth Indicator Probe reaches the bottom of the well, the plunger enters the probe body closing a switch, initiating an audible and visual signal at the top of the well.

Reel Assembly Standard Large
Height 36 cm (14.2") 50.5 cm (20")
Depth 21 cm (8.3") 27.6 cm (10.9")
Width 29 cm (11.4") 42 cm (16.5")
Weight (Reel Assembly Only) 2.30 kg (5.1 lbs) 4.56 kg (10.05 lbs)
Plate Size 26.67 cm (10.5") 30.48 cm (12")
40.64 cm (16")
Plate Material Nylon Aluminum
Brake Ergonomic Dial Ergonomic Dial
Hanger Included on frame leg Included on frame leg
Tape Guide Included on frame leg Included on frame leg
Test Points On back of frame On back of frame
Tape Lengths
  • 15 m, 50 ft
  • 30 m, 100 ft
  • 45 m, 150 ft
  • 60 m, 200 ft
  • 100 m, 300 ft
  • 150 m, 500 ft
  • 200 m, 750 ft
  • 300 m, 1000 ft
Tape High Tensile Steel
Jacketing Polyethylene
Conductors 7 strand (4 S/S & 3 copper)
Markings Metric or Engineering Scale - Under Jacketing
Width 0.952 cm (3/8")
Dog Bone Profile Yes
Break Strength 127 kg (280 lbs)
Weight 158 g (0.384 lb)
Length 248 mm (9.75")
Diameter 16 mm (0.625")
Removable Yes
Depth Rating IP68
Break Strain 68 kg (150 lbs)
Wetted Material S/S, Viton, Nylon, ABS & Teflon
Electronic Panel
Operating Mode Static & drawDown
Power Source 9 Volt alkaline
Sensitivity Control S/S & Aluminum
Audio / Visual Indication Ultra bright LED & 80 dBi buzzer
Rating IP65
Removable Yes
Maximum Temperature 80°C
