Heron Dipper-See Examiner Downhole Inspection Camera

Heron

Heron Dipper-See Examiner Downhole Inspection Camera

  • High Definition (HD) display screen
  • 25 mm (1") diameter probe, 316 marine grade stainless steel.
  • 150 m (500 ft) polyethylene cable.

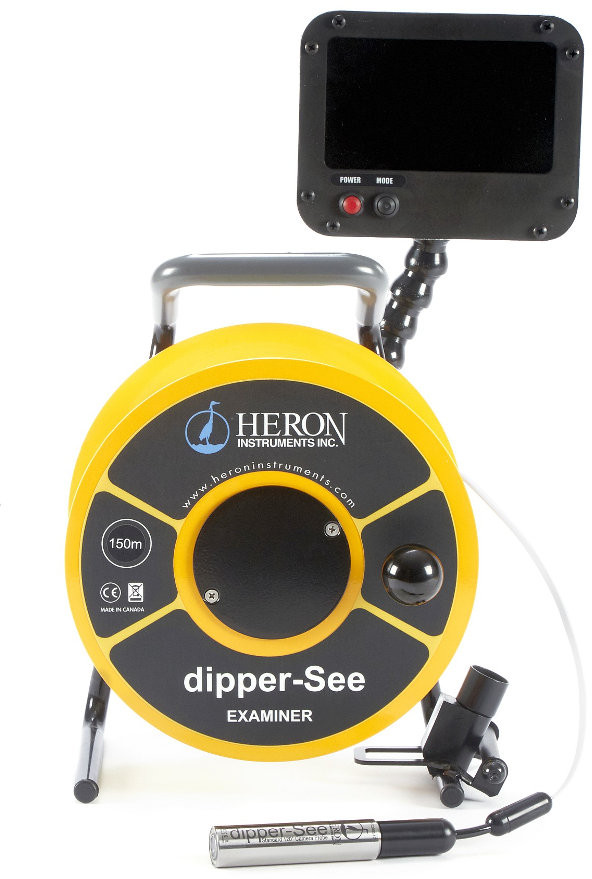

The Heron dipper-See EXAMINER is a robust and cost effective vertical downhole inspection camera. Designed with portability in mind, this self-contained unit is ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes over 25mm (1”) in diameter.*

The versatile positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the High Definition (HD) display screen at different angles and lighting conditions. The monitor conveniently houses all of the controls on the front of the panel. Record the video/audio on the SD card provided with the DVR, for easy transfer of video to another device.

The HD, detachable See-120 camera probe is designed to work in the harshest environments and stand up to the most rigorous use. The camera probe can be easily removed at the link connection for field replacement and for future camera upgrades.

The built-in hanger on the frame can support the unit at the top of the well, allowing for hands-free viewing while in the field.

  • Camera Probe - 25mm (1") diameter, 316 grade fully pressure rated, field replaceable
  • Lens – robust, scratch resistant clear sapphire
  • LED Lights – 7 ultra-bright
  • Display Screen – resolution 500TVL, 7”, full colour LCD
  • Monitor/Positioning Arm - removable
  • Tape – polyethylene, 4 conductors, marked every meter or foot
  • Hanger – built-in, to support the unit at the well head
  • Tape Guide – built-in, to protect the tape from sharp edges on the well casing

Accessories

  • DVR – records video and audio feed
  • SD Card – removable for transferring video to computer or USB
  • Charger - plug type A, AC Input, compact, portable
  • Batteries (x2) - removable rechargeable lithium ion, up to 5 hours (3200mAh) per battery
  • Microphone – 3.5mm jack, for video voice over
  • Centralizer – centers and stabilizes camera probe, removable
  • Retrieval Hook – for light weight items
  • Monitor Visor – for glare free viewing
  • Cleaning Cloth – for cleaning the lens and monitor
  • Alconox (x2) – sample packs for cleaning the See-120 camera probe

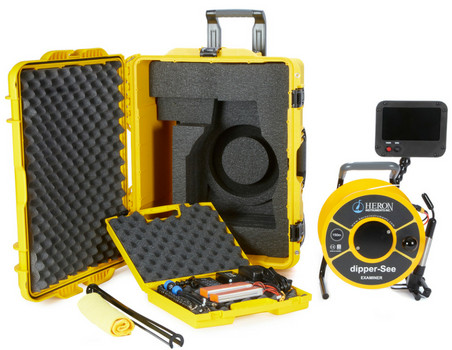

  • Super Tough, Wheeled Case – to protect your investment from the elements and transport

*Available in 150m or 500ft tape lengths only

Reel Assembly Standard
Height 36 cm (14.2")
Depth 21 cm (8.3")
Width 29 cm (11.4")
Weight (Reel Assembly Only) 2.30 kg (5.1 lbs)
Unit Weight 9.1 kg (20 lbs)
Unit / Accessories / Cases Weight 21.8 kg (48 lbs)
Plate Size 26.67 cm (10.5")
Plate Material Aluminum
Brake Ergonomic Dial
Hanger Included on frame leg
Tape Guide Included on frame leg
Test Points On back of frame
Tape Lengths 150 m, 500 ft
Cable
Tape Polyethylene
Jacketing Polyethylene
Conductors 7 strand (4 S/S & 3 copper)
Markings Marked every meter or foot
Width 0.952 cm (3/8")
Break Strength 127 kg (280 lbs)
Camera Probe
Weight 315 g ± 5%
Length 120 mm (4.75")
Diameter 25 mm (1")
Removable Yes
Depth Rating IP68 to 300 m (1000 ft)
Wetted Material Sapphire, Viton, Stainless 316, Delrin, Acrylic, Polyethylene
Lens Clear Sapphire
Operating Temperature 10 - 50°C
Monitor / DVR
Resolution 500TVL, 7.0" (diagonal)
Video Recording HD Video
Display Full Color LCD
DVR External, Included
SD Card 32 GB
Operating Temperature 20 - 60°C
Battery
Rechargeable x 2 11.1v, Lithium Ion
Charger Plug type A, AC Input
