Geotech Stainless Steel Geosub Pump Rental

Geotech

Geotech Stainless Steel Geosub Pump Rental

SKU
GEOSUB
  • Fits in 2" wells or larger.
  • Pumps from a maximum depth of 200 feet.
  • Flow rates up to 3.5 GPM or as low as 10 mL/min.
  • Controller powered by 115 volt AC Power or 12 volt car battery using DC to AC inverter.
Max Liquid Flow
3.5 GPM
Max Depth
200 ft
Daily Weekly Monthly
$165.00 $395.00 $1,185.00

The SS Geosub sampling pump is the most versatile single stage 12 Volt DC pump in the industry. Designed with all stainless steel components, the SS Geosub allows you to sample with confidence even in the harshest well conditions. The SS Geosub Pump operates with the Geotech SS Geosub Controller.

The SS Geosub Controller is designed specifically for use with Geotech's SS Geosub Pump. It provides a safe conditioned variable DC output power from an AC power source. Built-in sensing gives the operator accurate and precise control over the pump during sampling events. An average 1000 Watt gasoline powered generator with 1 gallon of gasoline can operate the SS Geosub Controller and Geotech's sampling pump at full power for up to 18 hours continuously (generally much longer runtimes can be expected as the controller is used to reduce water flow for low flow sampling). The DC to AC inverter can be used to power the pump using a 12 V car battery as well!


Pump Full Load Rating 2/3 HP
Pump Maximum Amp Draw 35 amps DC
Pump Overload Incorporated into SS Geosub Controller
Discharge Port Connection 1/4" female NPT (includes 3/8" barb)
Min. Ambient Fluid Temperature 34°F (1°C)
Max. Ambient Fluid Temperature 176°F (80°C)
Pump Wetted Parts 316 Stainless steel, PTFE, Viton®
Dimensions of Pump 12.2" L x 1.75" OD (31cm L x 4.5cm OD)
Net Weight of Pump w/o Lead 3.9 lbs. (1.8 kg)
Cable Material Two 12 gauge conductors with ETFE jacket, and integrated safety cable
Cable Weight 200' (61 m) of 12 AWG & Safety Cable - 24.9 lbs. (11.3 kg)
Controller Input Power
  • 130 Volts AC
    50/60 HZ 310 Watts 2.6 amps nominal full load 115 Volts AC
  • 250 Volts AC
    50/60 HZ 310 Watts 1.3 amps nominal full load 230 Volts AC
Controller Output Power Variable 0-46V DC @ <300 Watts
Controller Amps @ Max Volt 10 amps maximum
Controller Operating Temp -20°F to 100°F (-29°C to 38°C) ambient air temp.
Controller Humidity Up to 90% humidity
Controller Weight 16.45 lbs. (7.46 kg)
Controller Size 16" L x 13" W x 7" H (41cm L x 33cm W x 18cm H)
Input Protection 5A CB

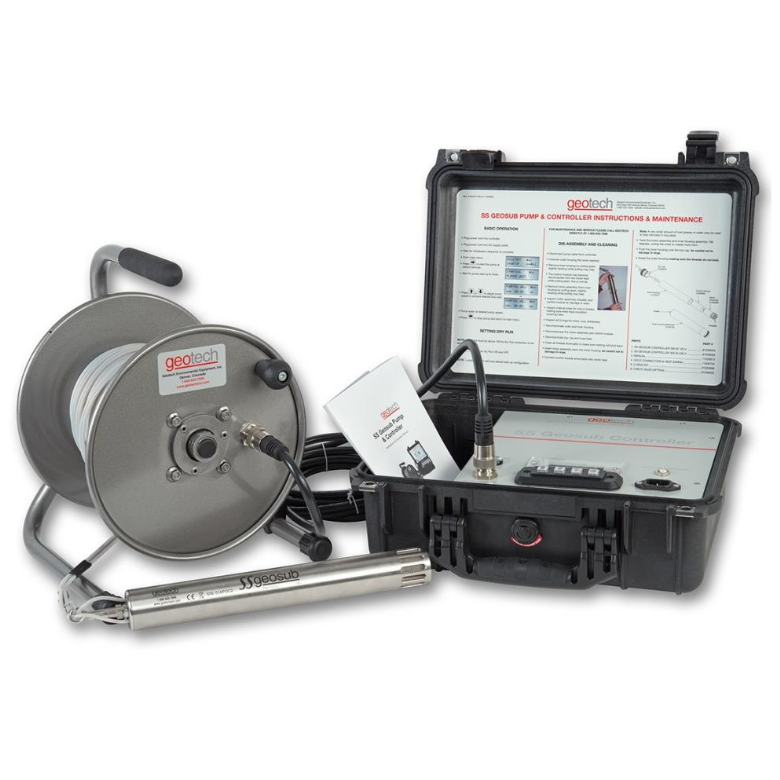

  • SS Geosub Pump
  • SS Geosub Controller
  • Geo Reel with 200 ft Cable
  • DC to AC Inverter
  • Instruction Manual
