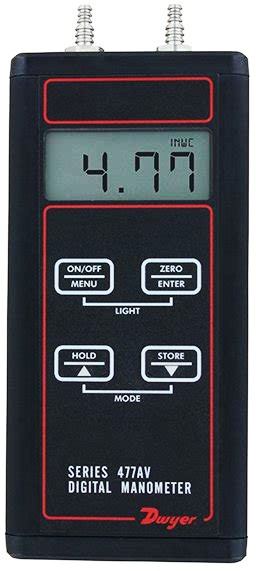

Dwyer Digital Manometer Rental
Dwyer Digital Manometer Rental
- 0 - 200.00 WC, 0 - 10.00 PSI, and 0 - 30.00 PSI models available.
- Accuracy:
- ±0.5% Full Scale, 60 to 78°F (15.6 to 25.6°C); ±1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
- Pressure Hysteresis:
- ±0.1% of Full Scale.
- Temperature Limits:
- 0 to 140°F (-17.8 to 60°C).
- Compensated Temperature Limits:
- 32 to 104°F (0 to 40°C).
- Storage Temperature Limits:
- -4 to 176°F (-20 to 80°C).
- Display:
- 0.42" (10.6 mm) 4-digit LCD.
- Response Time:
- 1 second.
- Power Requirements:
- 9 V alkaline battery, installed non-functional, user replaceable.
- Weight:
- 10.2 oz (289 g).
- Process Connections:
- Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing
- Agency Approvals:
- CE, FM.
