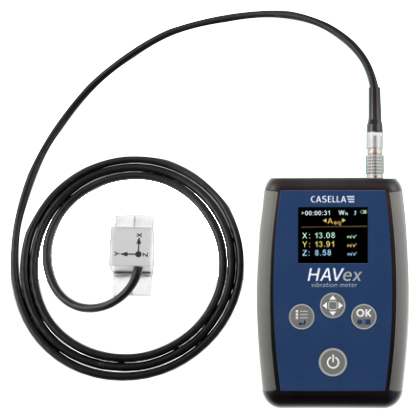

Casella HAVex Tri-Axial Hand Arm Vibration Meter
Casella

Casella HAVex Tri-Axial Hand Arm Vibration Meter

  • Robust accelerometer & cable
  • Large color display
  • Large 'flash' memory
  • Large dynamic range
  • Rechargeable battery
  • Easily view, export & report data
  • Supplied as a kit with everything you need to begin measuring
SKU
M104006
Quote

The HAVex Tri-Axial Hand Arm Vibration Meter has been specifically designed for Hand Arm Vibration Measurements. It's a simple to use meter allowing you measure the levels of vibration that can be transmitted to the hand from power tools.  The data is clearly displayed on the meter screen for instant checking of levels.

Also Includes HAVexdata Lite Software

The HAVex data Lite program, which is supplied with the instrument, allows you to download the measurements for further analysis and for storage of your data, as required by the regulations. Simply connect your instrument using the supplied USB cable to download the data. You can highlight high levels and easily create custom tables and reports.

Performance Conforms to ISO 8041: 2005 Human Response to Vibration - Measuring Instrumentation
Level Ranges
  • Low: 0.05-200 m/s2, 0.005-20.4g
  • High: 0.5-2000 m/s2, 0.05-204g
Channels 1
Parameters Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, Exposure Points
Linear Range 72 dB
Frequency Weighting WH - Hand Arm Filter
Memory Flash Memory storing up to 992 recordings
Transudcer KD1010, 10 mV/g
Noise Floor
  • Low: 0.002 m/s2
  • High: 0.020 m/s2
Display Full Color, Graphic OLED 160 x 128
Batteries NiMH rechargeable (typically 10 hours continuous use)
Connections
  • AC Output: 4 pole 3.5mm jack
  • Download: USB Micro B (included)
  • Recharge: DC socket (charger & cable supplied)
Environmental
  • Temperature: -10°C to +50°C
  • Humidity: up to 90% RH non-condensing
Electromagnetic SI 2005/281, 2004/108/EC
Case High impact ABS plastic and tactile membrane keypad
