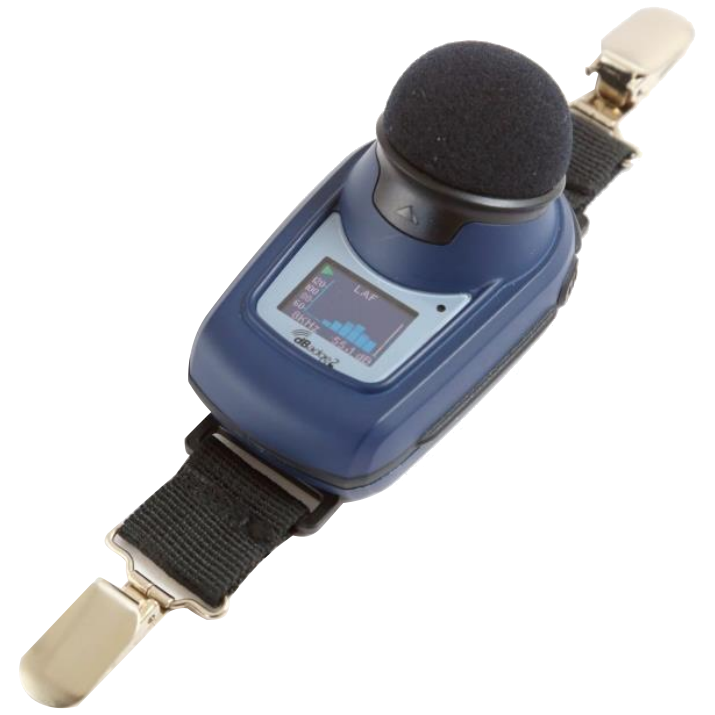

Casella dBadge2 Noise Dosimeters

  • Instrinsically Safe
  • Bluetooth® Connectivity
  • Optional Octave Band Analysis
  • Multiple 'Simulated' Dosimeters
  • Motion Sensor
  • Compliant with ANSI S1.25 - 1991 (R2007)

The dBadge2 is the next generation in personal noise dosimeters, offering features only previously available in the most advanced of hand held sound level meters. Now with Intrinsically Safe versions, the dBadge2 is the perfect tool for personal noise assessment, whichever industry or environment you work in.

Available Models


Stored Data Sets

The dBadge2 simultaneously records and computes all noise data for every measurement run. The comprehensive set of data containing all of the below parameters is available to view and analyse within the Casella Insight PC application or using the download utility. The Dosimeter Set-ups D1, D2 and D3 define which parameters are displayed on the instrument itself but all values are automatically stored in the memory of the dBadge2 for download.

TWA (8 hr) Projected TWA 8 hr
Dose % Proj Dose %
LEPd / LEX, 8 hr Proj LEPd/LEX, 8h
LAPk + Time LCPk + Time LZPk + Time
Pa2Hrs Pa2Secs
ISO Dose% (using ISO Criterion level)
ISO Proj Dose% (using ISO Criterion level)
Projected Exposure Points (using ISO Criterion level)
Exposure Points (using ISO Criterion level)
Exceedance time (LAS > Exceedance level)
HML (LC-LA)
LCpk >135 (count) LCpk >137 (count) LCpk >140 (count)
LAFmx + Time LAFmin + Time
LASmx + Time LASmin + Time
LAImx + Time LAImin + Time
Cumulative Motion Index (expressed as % motion detected during a measurement run).

Get Connected!

Monitor your dBadge2 remotely with the supporting Airwave App on your mobile device.  There’s no need to disturb the wearer when you can view the status or even start, stop or pause the measurement run.

Octave Band Analysis

Once only found on an advanced hand-held sound level meter, octave band analysis is available as an option on the dBadge2 Pro personal noise dosimeter model.Overall LEQ and LMAX values are displayed both on screen in graphical format and in a table format when downloaded.

Intrinsically Safe

Intrinsically Safe versions of the dBadge2 personal noise dosimeter are available.  The dBadge2 personal noise dosimeter has been designed specifically to be used in potentially explosive area in the oil and gas, petrochemical and pharmaceutical industries.

Multiple Simulated Dosimeters

The dBadge2 personal noise dosimeter has a ‘multiple simulated dosimeter’ capability to display noise exposure results according to differing regional or international protocols.  These simulated dosimeters simply define the measurement parameters displayed on screen and includes ISO, OSHA, MSHA and ACGIH set-ups.

Color Display

The dBadge2™ personal noise dosimeter takes full advantage of the OLED display by color coding screens, status and alarms.  This aids data interpretation in the field, giving a strong visual indicator when trigger levels have been exceeded.

Motion Sensing

The built in motion sensor expresses a worker’s movement as a percentage of the time that motion has been detected during a measurement run.  This means that you can be confident that the dBadge2™ personal noise dosimeter has been worn for the entire shift.

Audio Recording

Available on the Plus and Pro models, the audio recording option allows you to record voice notes for a measurement run such as an employee’s name or task.

Combined Docking Station and Charger

When placed in any of the 3 pockets, the dBadge2™ personal noise dosimeter will begin to charge, progress being displayed on the screen of the meter.  The first pocket has a USB symbol and when placed in there, an individual dBadge2™ can download data, either via a Download Utility directly into Excel or via the Insight Data Management Software specialist dBadge2™ plugin.

P65 Warning

Standards ANSI S1.25:1991 R2007, IEC 61252 Ed 1.1 (2002-3)
Linear Operating Range: 55.0-140.3 dB (A) RMS
Peak Measurement Range: 90.0-143.3dB (C or Z weighted),
Sound Exposure Range: 0.0- 6,100.0 Pa2Hours
Frequency Weightings: A, C and Z, Type 2
Time Weightings: Fast, Slow and Impulse
Exchange Rate: Q=3 or Q=5dB exchange rates
Threshold and Criterion: 70-90dB in 1dB steps
Operating Temperature Range:
  • 0°C to +40°C (for <±0.5dB error limit)
  • -10°C to +50°C (for <±0.8dB error limit)
Ambient Pressure Range: < ±0.5dB over 85 - 112kPa
Humidity Range: < ± 0.5dB over 30% - 90% (non-condensing)
Storage Temperature Range: -10°C to +50°C
Battery: Internal NiMH, 800mAH
Run Time:
  • Typically 35 hours using Broadband Mode
  • Typically 15 hours using Octave mode
Charge Time: < 6 Hours from fully discharged
Maximum Run Duration: 24 Hours
Maximum Number of Runs: 100
Storage Capacity: Internal USD Flash memory - 300 hours of run data (including 1 second profile data) and up to 90 minutes of event audio recording.
PC Interface: USB 2.0 Full Speed 12 Mbps via Docking Station
Dimensions: 85 L x 54 W x 55 H (mm)
Weight: 117g
Environmental I.P. Rating: IP65 (with permeable air vent)
