AMS Soil Vapor Probe Kit with Hammer Drill Rental

  • Sample with reusable retractable tip or dedicated stainless steel sampling tip (purchased separately).
  • Ground penetration by slide hammer or electric rotary drive hammer.
  • [4] 3' GVP 5/8" extensions allow sampling up to 12 feet depth.
  • Fluoropolymer tubing (purchased separately) is attached to a barb fitting on the GVP tip for remote sampling from the surface.

*Only available for PICK-UP (Charlotte, NC) orders*

SKU
RN-AMS-SVPK
Rental Rates
Daily Weekly Monthly
$234.00 $678.00 $2,032.00

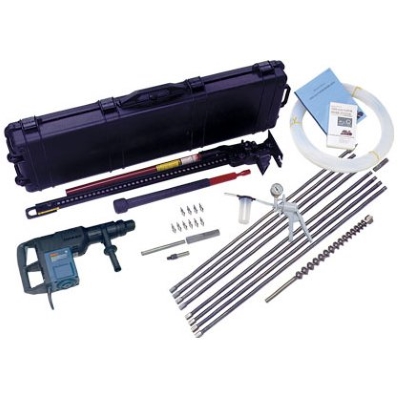

The AMS Soil Probe Kit uses an AMS slide hammer or an electric rotary drive hammer and extensions to insert a dedicated stainless steel tip or the reusable retractable tip to the desired sampling depth. Teflon tubing is attached to a barb fitting on the vapor tip for remote sampling from the surface.

  • Retract-A-Tip
  • (4) 3' x 5/8" vapor rod extensions
  • (3) 3' x 5/8" heavy-duty tile probe extensions
  • External drive adapter 3/4" ID
  • Slide hammer
  • Removal jack
  • 1.5" wild bore bit
  • SDS-Max drill adapter
  • 3/4" OD slide hammer adapter
  • 5/8" tip drive end
  • 3' x 5/8" heavy-duty extendable tile probe base
  • Hand vacuum pump
  • Instruction Manual
  • Carrying case
