Heron Water Tape2 Water Level Meter
Heron Water Tape2 Water Level Meter
- Available in 100 - 1500 feet or 30 - 450 meter lengths.
- White polyethylene tape, reinforced with Kevlar.
- Static and DrawDown operating modes.
- Fully pressure/depth rated probes*
The Heron Water Tape2, an economical water level meter, can be used for measuring both static and drawDown levels in open bodies of water, wells, boreholes and standpipes. This low cost unit with dual function capability is ideal for every project and budget.
The Water Tape2 manufactured with the white polyethylene tape, reinforced with Kevlar is available in both metric and engineering scale. Unlike some other white tape units, the water tape2 comes with a fully pressure rated probe* and carry bag.

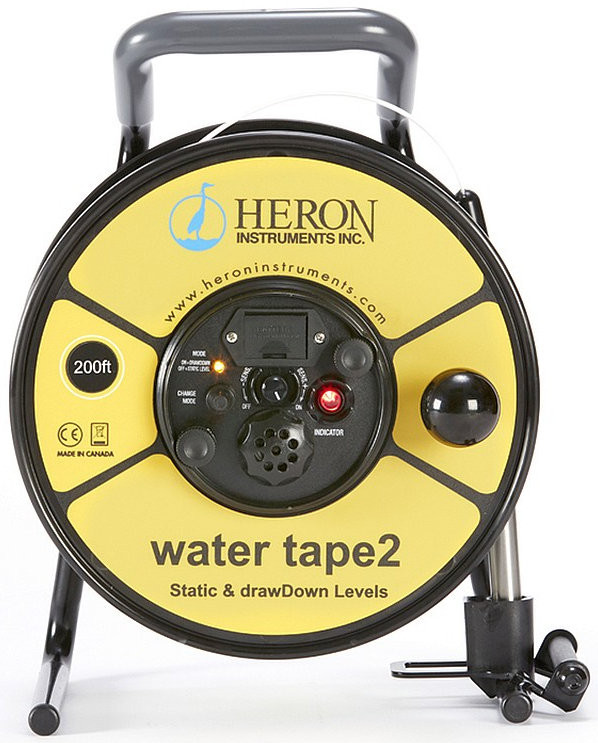

- Electronic Module (IP65) – change mode for static and drawDown levels, removable for easy cleaning and servicing. Circuits and components are potted to protect from moisture and dust intrusion
- Sensitivity Switch – to adjust for false signals from cascading water
- Link – to prevent damage to the tape, the probe is sacrificed at the link area if snagged in the well
- Probe (IP68) – 5/8” fully pressure/depth rated*, no holes or recesses for contaminate build up
- Tape – polyethylene, reinforced with Kevlar – markings in metric (mm) or engineering scale (1/100’)

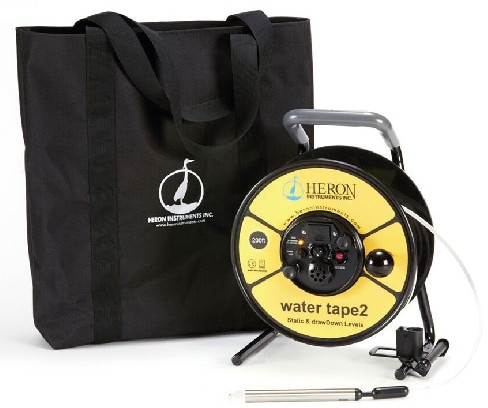

- Carry Bag – to protect your water level meter from the elements
- Hanger – built in, to support the meter at the well head, allows for hands free deployment
- Tape Guide – built in, to protect the tape from sharp edges on the well casing
- Vinyl Holding Grip – molded to the frame, ergonomic easy grip
- Winding Handle – custom made for easy rewinding with gloved hands
*Temporarily Submersible
Reel Assembly | Standard | Large | Double |
---|---|---|---|
Height | 36 cm (14.2") | 50.5 cm (20") | 50.75 cm (20") |
Depth | 21 cm (8.3") | 27.6 cm (10.9") | 51 cm (20.08") |
Width | 29 cm (11.4") | 42 cm (16.5") | 36.75 cm (14.5") |
Weight (Reel Assembly Only) | 2.30 kg (5.1 lbs) | 4.56 kg (10.05 lbs) | 7.08 kg (15.65 lbs) |
Plate Size | 26.67 cm (10.5") | 30.48 cm (12") 40.64 cm (16") |
30.48 cm (12") |
Plate Material | Nylon | Aluminum | Aluminum |
Brake | Ergonomic Dial | ||
Hanger | Included on frame leg | Included on frame leg | No |
Tape Guide | Included on frame leg | Included on frame leg | No |
Test Points | On back of frame | On back of frame | Use Conductive Material |
Tape Lengths |
|
|
|
Tape | |
---|---|
Tape | Polyethylene |
Jacketing | No |
Conductors | 7 strand (4 S/S & 3 copper) |
Markings | Metric or Engineering Scale - Under Jacketing |
Width | 0.952 cm (3/8") |
Dog Bone Profile | Yes |
Break Strength | 127 kg (280 lbs) |
Probe | |
---|---|
Weight | 158 g (0.384 lb) |
Length | 248 mm (9.75") |
Diameter | 16 mm (0.625") |
Removable | No |
Depth Rating | IP68 |
Break Strain | 68 kg (150 lbs) |
Wetted Material | S/S, Viton, Nylon, ABS & Teflon |
Electronic Panel | |
---|---|
Operating Mode | Static & drawDown |
Power Source | 9 Volt alkaline |
Sensitivity Control | S/S & Aluminum |
Audio / Visual Indication | Ultra bright LED & 80 dBi buzzer |
Rating | IP65 |
Removable | Yes |
Maximum Temperature | 80°C |
