Heron Dipper-T2 Water Level Meter
Heron Dipper-T2 Water Level Meter
- Available in 50 - 2000 feet or 15 - 600 meter lengths.
- High tensile steel tape, jacketed with polyethylene, high break strength, stretch resistant.
- Static and DrawDown operating modes.
- Fully pressure/depth rated probes.

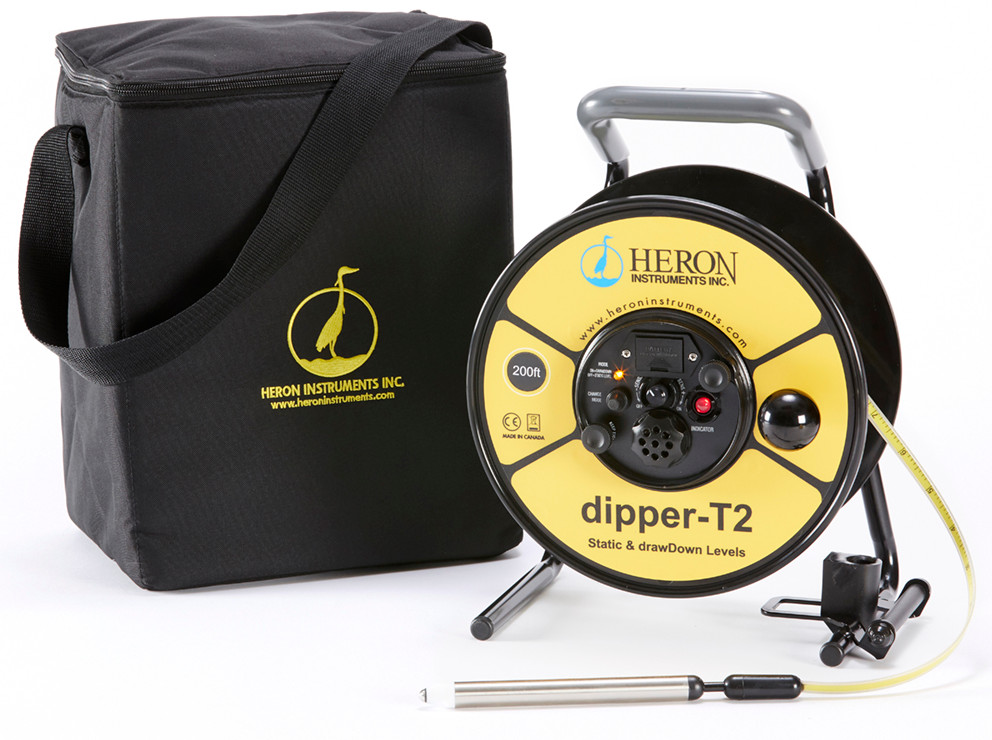

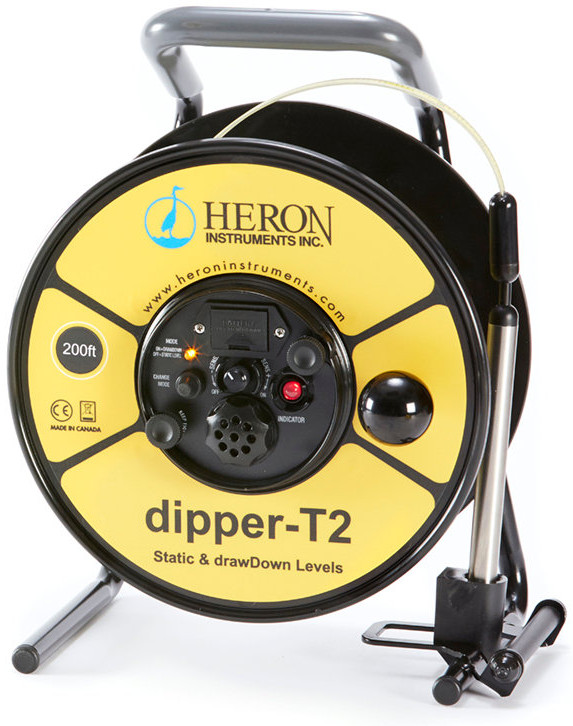

The Heron dipper-T2 is a rugged and dependable water level meter made from high quality materials, easy to use for a wide variety of applications. The dipper-T2 is capable of measuring both static and falling head levels. Static mode is used for measuring the depth of water in wells, boreholes and standpipes. DrawDown mode is used for measuring fallingwater levels during purging, well development and for low flow sampling; helping to protect your pump from damage caused by dry running.
The Heron dipper-T2 is renowned for its premium, polyethylene coated yellow steel tape accuracy in measuring depth to water. Available in your choice of either metric or engineering scale.
| Reel Assembly | Standard | Large | Double |
|---|---|---|---|
| Height | 36 cm (14.2") | 50.5 cm (20") | 50.75 cm (20") |
| Depth | 21 cm (8.3") | 27.6 cm (10.9") | 51 cm (20.08") |
| Width | 29 cm (11.4") | 42 cm (16.5") | 36.75 cm (14.5") |
| Weight (Reel Assembly Only) | 2.30 kg (5.1 lbs) | 4.56 kg (10.05 lbs) | 7.08 kg (15.65 lbs) |
| Plate Size | 26.67 cm (10.5") | 30.48 cm (12") 40.64 cm (16") |
30.48 cm (12") |
| Plate Material | Nylon | Aluminum | Aluminum |
| Brake | Ergonomic Dial | Ergonomic Dial | Spring Loaded Pin |
| Hanger | Included on frame leg | Included on frame leg | No |
| Tape Guide | Included on frame leg | Included on frame leg | No |
| Test Points | On back of frame | On back of frame | Use Conductive Material |
| Tape Lengths |
|
|
|
| Tape | |
|---|---|
| Tape | High Tensile Steel |
| Jacketing | Polyethylene |
| Conductors | 7 strand (4 S/S & 3 copper) |
| Markings | Metric or Engineering Scale - Under Jacketing |
| Width | 0.952 cm (3/8") |
| Dog Bone Profile | Yes |
| Break Strength | 127 kg (280 lbs) |
| Probe | |
|---|---|
| Weight | 158 g (0.384 lb) |
| Length | 248 mm (9.75") |
| Diameter | 16 mm (0.625") |
| Removable | No |
| Depth Rating | IP68 |
| Break Strain | 68 kg (150 lbs) |
| Wetted Material | S/S, Viton, Nylon, ABS & Teflon |
| Electronic Panel | |
|---|---|
| Operating Mode | Static & drawDown |
| Power Source | 9 Volt alkaline |
| Sensitivity Control | S/S & Aluminum |
| Audio / Visual Indication | Ultra bright LED & 80 dBi buzzer |
| Rating | IP65 |
| Removable | Yes |
| Maximum Temperature | 80°C |
